Home Wheel Bearing Kits & Hub Bearings Ford Tourneo Connect MPV

(2002-2009) MPV

Tourneo Connect 1.8 TDCi 110 (108bhp) Diesel 8v FWD (1753cc) - (08/06-12/09)

TBK1304 - Main View

Close

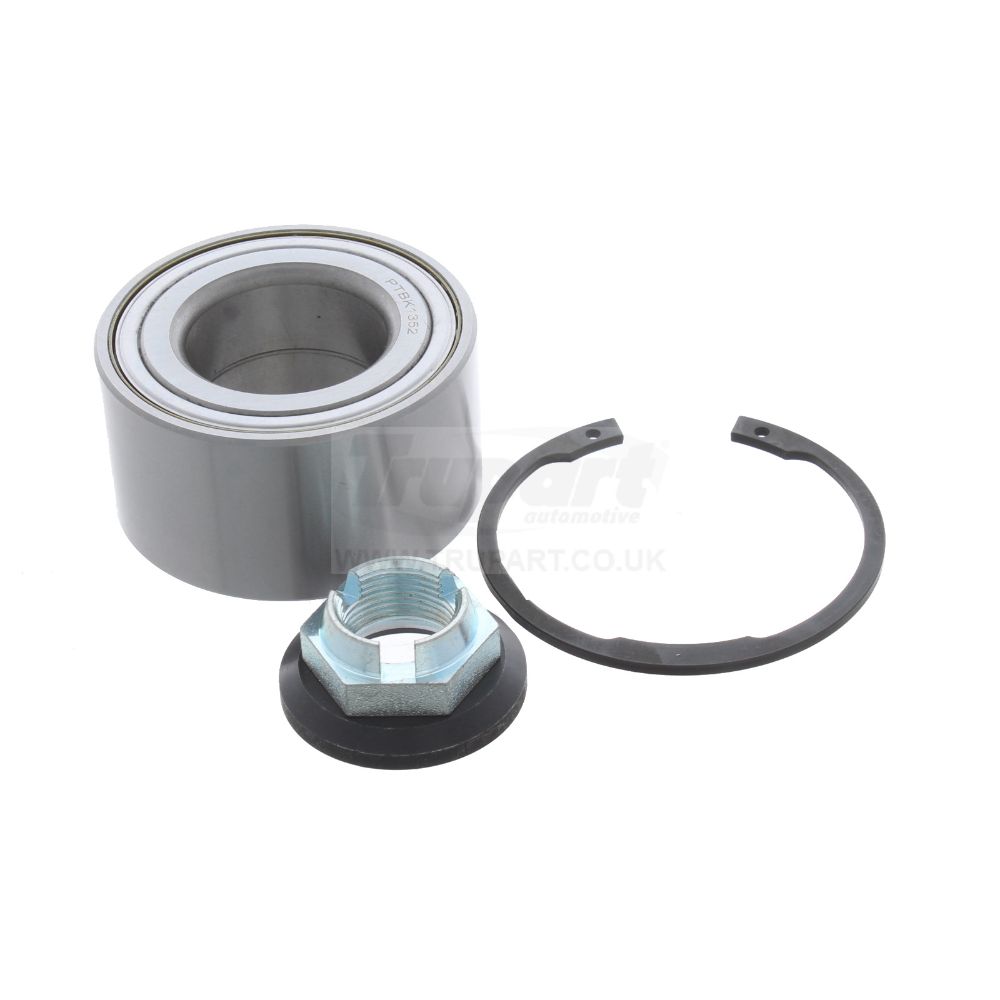

TBK1352 - Main View

Close

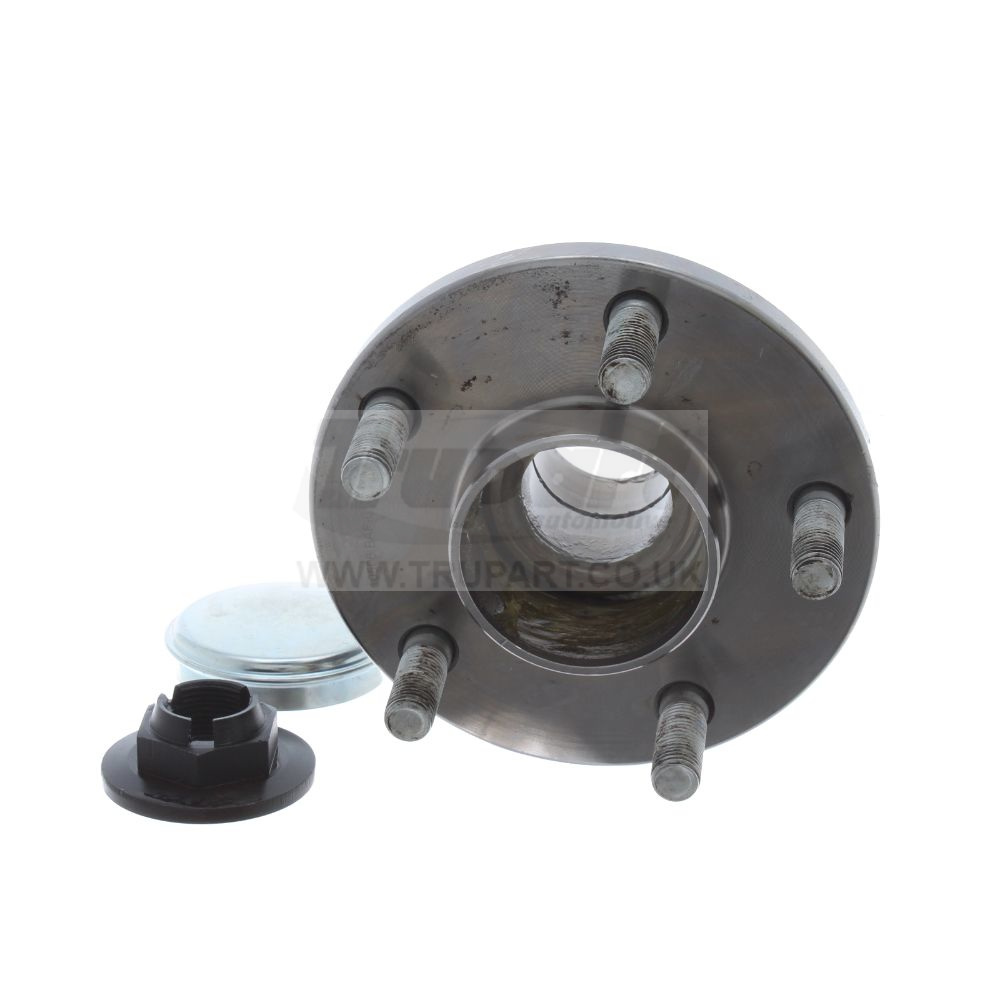

TBK1305 - Main View

Close

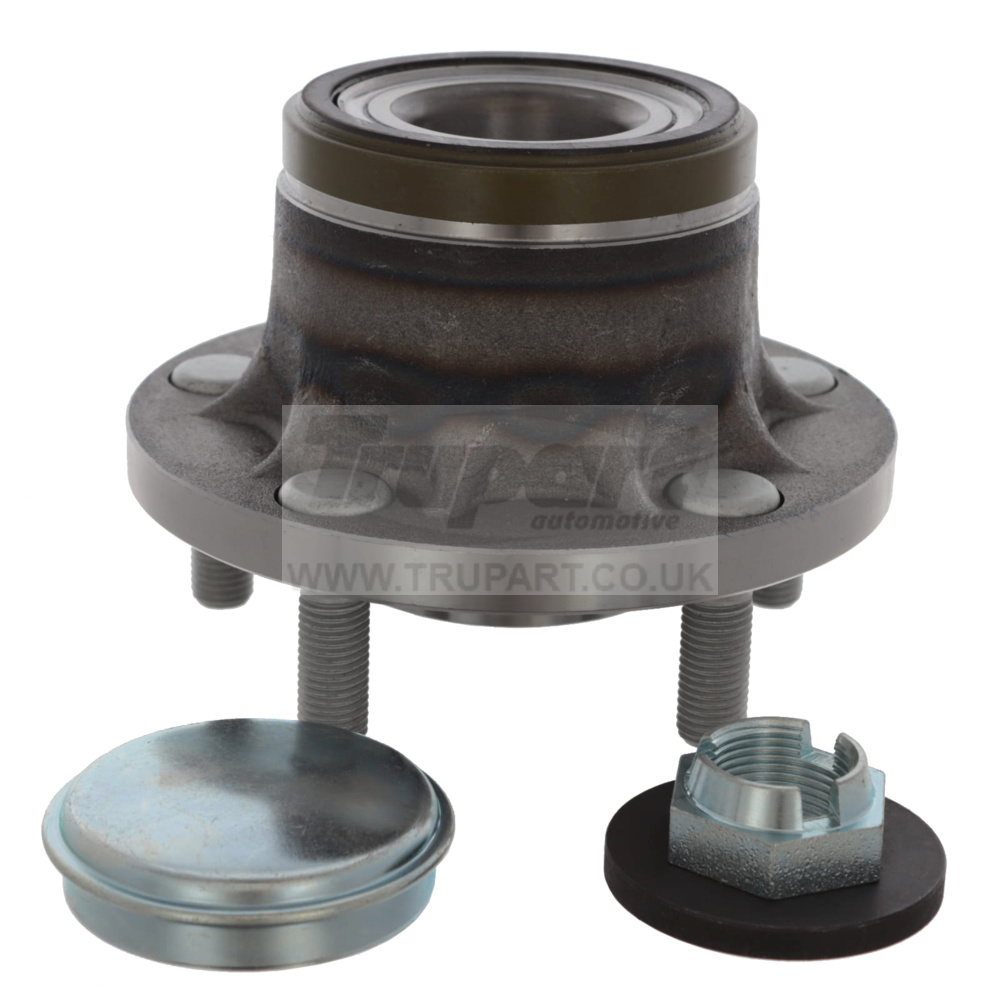

TBK1306 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK1304 08/06-12/09 - ASB Bearing (ABS), I/D 39mm : O/D 74mm : Width 39mm
Wheel Bearing Kit FR TBK1352 08/06-12/09 - No ABS, I/D 39mm : O/D 74mm : Width 39mm
Hub Bearing Kit RR TBK1305 08/06-12/09 - No ABS, I/D 37mm : Flange 136mm : Width 87mm
Hub Bearing Kit RR TBK1306 08/06-12/09 - ASB Bearing (ABS), I/D 37mm : Flange 136mm : Width 85mm

Tourneo Connect 1.8 TDCi 90 (89bhp) Diesel 8v FWD (1753cc) - (06/02-12/09)

TBK1304 - Main View

Close

TBK1352 - Main View

Close

TBK1305 - Main View

Close

TBK1306 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK1304 06/02-12/09 - ASB Bearing (ABS), I/D 39mm : O/D 74mm : Width 39mm
Wheel Bearing Kit FR TBK1352 06/02-12/09 - No ABS, I/D 39mm : O/D 74mm : Width 39mm
Hub Bearing Kit RR TBK1305 06/02-12/09 - No ABS, I/D 37mm : Flange 136mm : Width 87mm
Hub Bearing Kit RR TBK1306 06/02-12/09 - ASB Bearing (ABS), I/D 37mm : Flange 136mm : Width 85mm

(2009-2013) MPV

Tourneo Connect 1.8 TDCi 110 (108bhp) Diesel 8v FWD (1753cc) - (08/09-12/13)

TBK1304 - Main View

Close

TBK1352 - Main View

Close

TBK1305 - Main View

Close

TBK1306 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK1304 08/09-12/13 - ASB Bearing (ABS), I/D 39mm : O/D 74mm : Width 39mm
Wheel Bearing Kit FR TBK1352 08/09-12/13 - No ABS, I/D 39mm : O/D 74mm : Width 39mm
Hub Bearing Kit RR TBK1305 08/09-12/13 - No ABS, I/D 37mm : Flange 136mm : Width 87mm
Hub Bearing Kit RR TBK1306 08/09-12/13 - ASB Bearing (ABS), I/D 37mm : Flange 136mm : Width 85mm

Tourneo Connect 1.8 TDCi 90 (89bhp) Diesel 8v FWD (1753cc) - (08/09-12/13)

TBK1304 - Main View

Close

TBK1352 - Main View

Close

TBK1305 - Main View

Close

TBK1306 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK1304 08/09-12/13 - ASB Bearing (ABS), I/D 39mm : O/D 74mm : Width 39mm
Wheel Bearing Kit FR TBK1352 08/09-12/13 - No ABS, I/D 39mm : O/D 74mm : Width 39mm
Hub Bearing Kit RR TBK1305 08/09-12/13 - No ABS, I/D 37mm : Flange 136mm : Width 87mm
Hub Bearing Kit RR TBK1306 08/09-12/13 - ASB Bearing (ABS), I/D 37mm : Flange 136mm : Width 85mm

(2013-) MPV

Tourneo Connect 1.0 EcoBoost 100 (99bhp) Petrol 12v FWD (999cc) - (10/13-)

TBK6780 - Main View

Close

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 10/13- - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm
Hub Bearing Kit RR TBK9359 10/13- - Integrated ABS Sensor, Flange 136mm : Width 110mm

Tourneo Connect 1.5 TDCI 100 (118bhp) Diesel 8v FWD (1499cc) - (06/15-)

TBK6780 - Main View

Close

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 06/15- - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm
Hub Bearing Kit RR TBK9359 06/15- - Integrated ABS Sensor, Flange 136mm : Width 110mm

Tourneo Connect 1.5 TDCI 100 (99bhp) Diesel 8v FWD (1499cc) - (06/15-)

TBK6780 - Main View

Close

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 06/15- - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm
Hub Bearing Kit RR TBK9359 06/15- - Integrated ABS Sensor, Flange 136mm : Width 110mm

Tourneo Connect 1.6 EcoBoost 150 (147bhp) Petrol 16v FWD (1596cc) - (10/13-04/16)

TBK6780 - Main View

Close

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 10/13-04/16 - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm
Hub Bearing Kit RR TBK9359 10/13-04/16 - Integrated ABS Sensor, Flange 136mm : Width 110mm

Tourneo Connect 1.6 TDCi 115 (113bhp) Diesel 8v FWD (1560cc) - (10/13-04/16)

TBK6780 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 10/13-04/16 - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm

Tourneo Connect 1.6 TDCi 115 (114bhp) Diesel 8v FWD (1560cc) - (10/13-04/16)

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Hub Bearing Kit RR TBK9359 10/13-04/16 - Integrated ABS Sensor, Flange 136mm : Width 110mm

Tourneo Connect 1.6 TDCi 95 (94bhp) Diesel 8v FWD (1560cc) - (10/13-04/16)

TBK6780 - Main View

Close

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 10/13-04/16 - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm
Hub Bearing Kit RR TBK9359 10/13-04/16 - Integrated ABS Sensor, Flange 136mm : Width 110mm

Grand Tourneo Connect (2013-) MPV

Grand Tourneo Connect 1.5 TDCI 100 (99bhp) Diesel 8v FWD (1499cc) - (06/15-)

TBK6780 - Main View

Close

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 06/15- - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm
Hub Bearing Kit RR TBK9359 06/15- - Integrated ABS Sensor, Flange 136mm : Width 110mm

Grand Tourneo Connect 1.5 TDCI 120 (118bhp) Diesel 8v FWD (1499cc) - (06/15-)

TBK6780 - Main View

Close

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 06/15- - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm
Hub Bearing Kit RR TBK9359 06/15- - Integrated ABS Sensor, Flange 136mm : Width 110mm

Grand Tourneo Connect 1.6 TDCi 115 (113bhp) Diesel 8v FWD (1560cc) - (10/13-04/16)

TBK6780 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 10/13-04/16 - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm

Grand Tourneo Connect 1.6 TDCi 115 (114bhp) Diesel 8v FWD (1560cc) - (10/13-04/16)

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Hub Bearing Kit RR TBK9359 10/13-04/16 - Integrated ABS Sensor, Flange 136mm : Width 110mm

Grand Tourneo Connect 1.6 TDCi 95 (94bhp) Diesel 8v FWD (1560cc) - (10/13-04/16)

TBK6780 - Main View

Close

TBK9359 - Main View

Close
Description Pos Part No Date Note Note
Wheel Bearing Kit FR TBK6780 10/13-04/16 - ASB Bearing (ABS), I/D 45mm : O/D 82mm : Width 42mm
Hub Bearing Kit RR TBK9359 10/13-04/16 - Integrated ABS Sensor, Flange 136mm : Width 110mm

All comparative part numbers shown within our catalogues, on our website, or quoted on our products are for identification and cross referencing purposes only.
