- Please Select a Sub-Model
E83 (2004-2011) ATV/SUV
X3 2.0 d (150bhp) Diesel (16v) 4WD (1995cc) - (09/04-05/08)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|

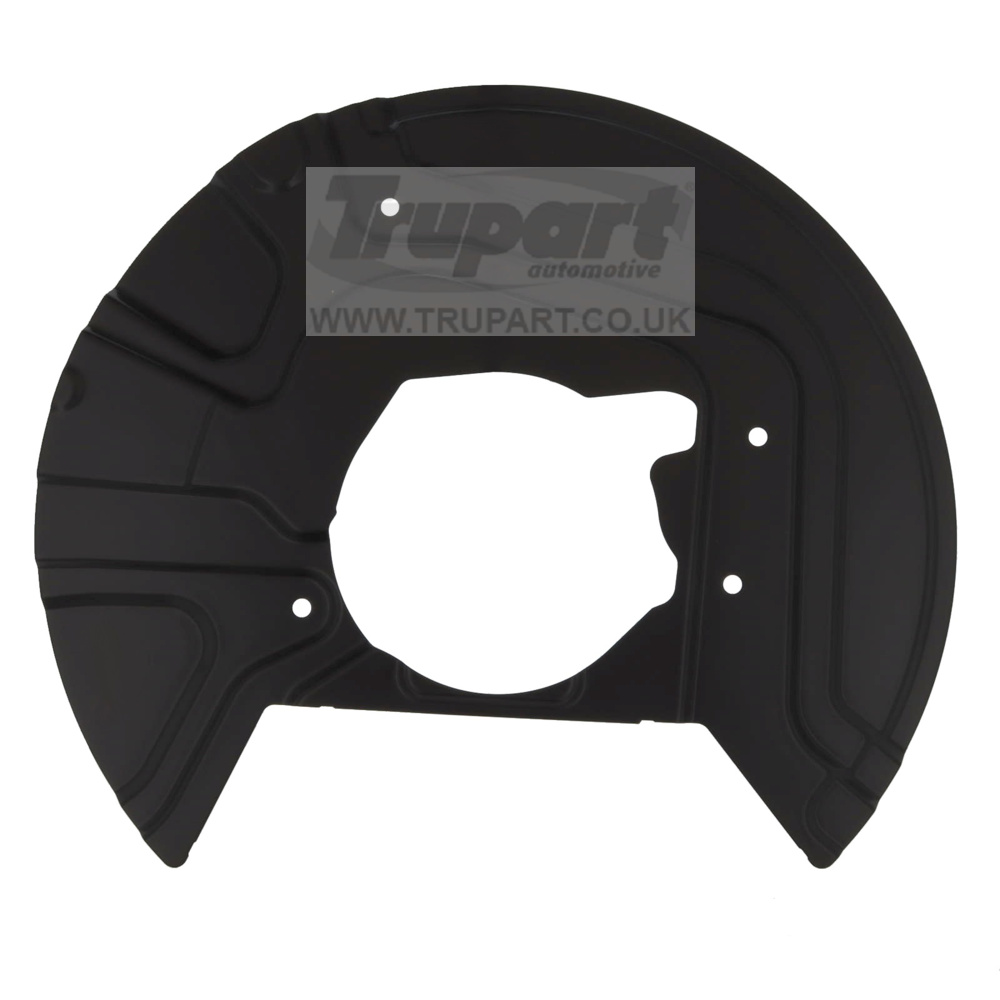

| Brake Disc Shield | FR LH | DS0071 |
|
09/04-05/08 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |

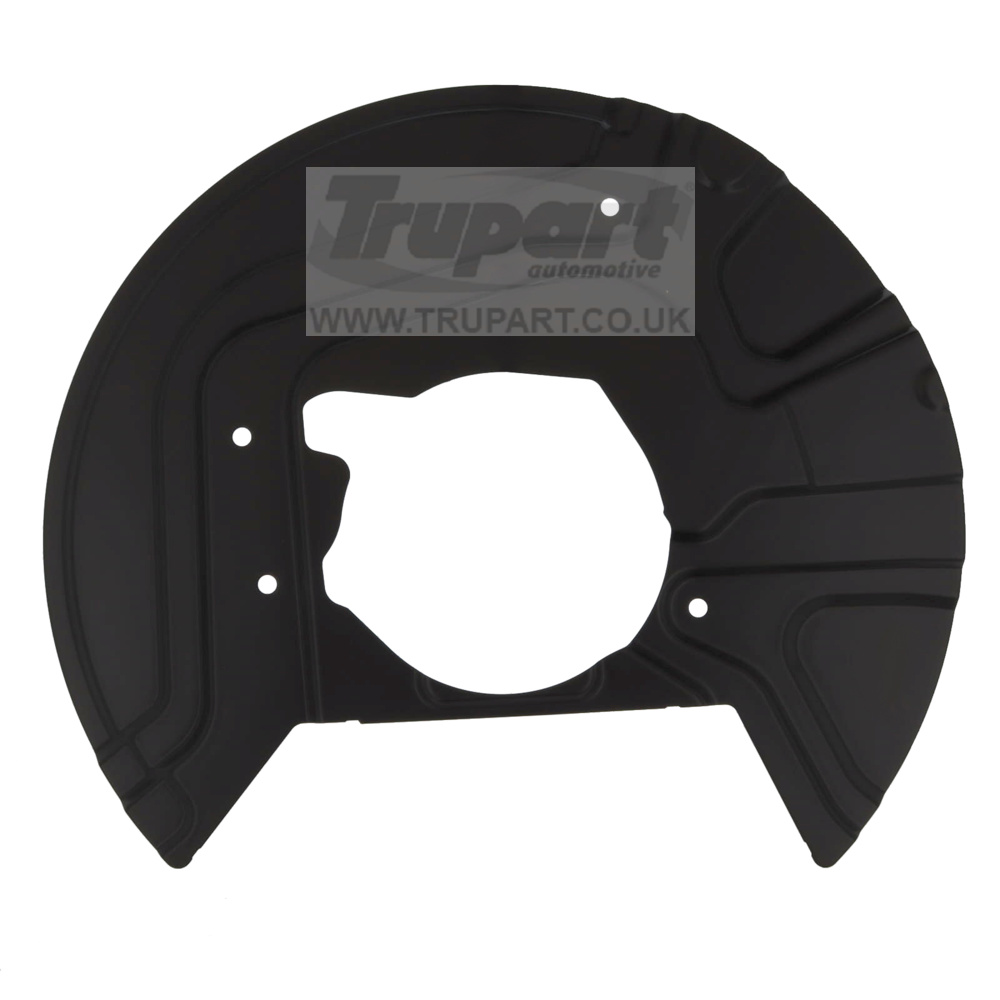

| Brake Disc Shield | FR RH | DS0070 |
|
09/04-05/08 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |

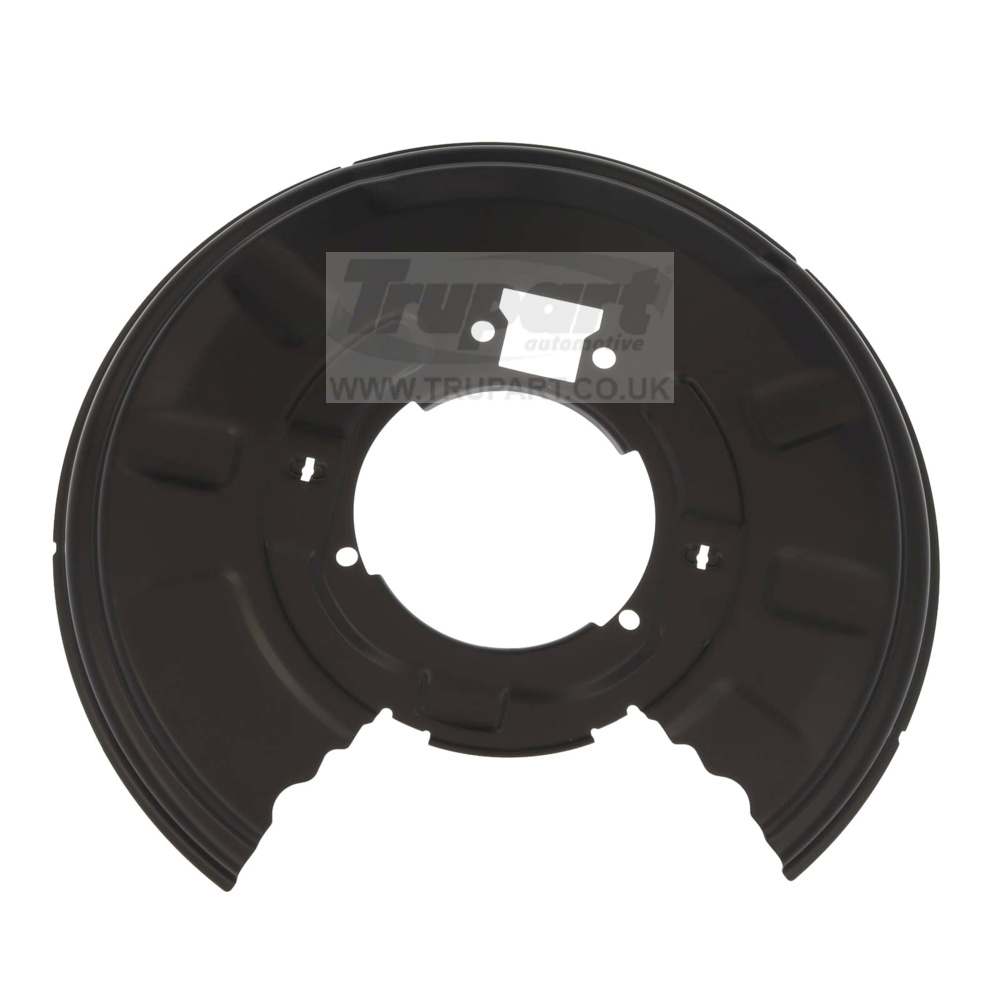

| Brake Disc Shield | RR LH | DS0043 |
|
09/04-05/08 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |

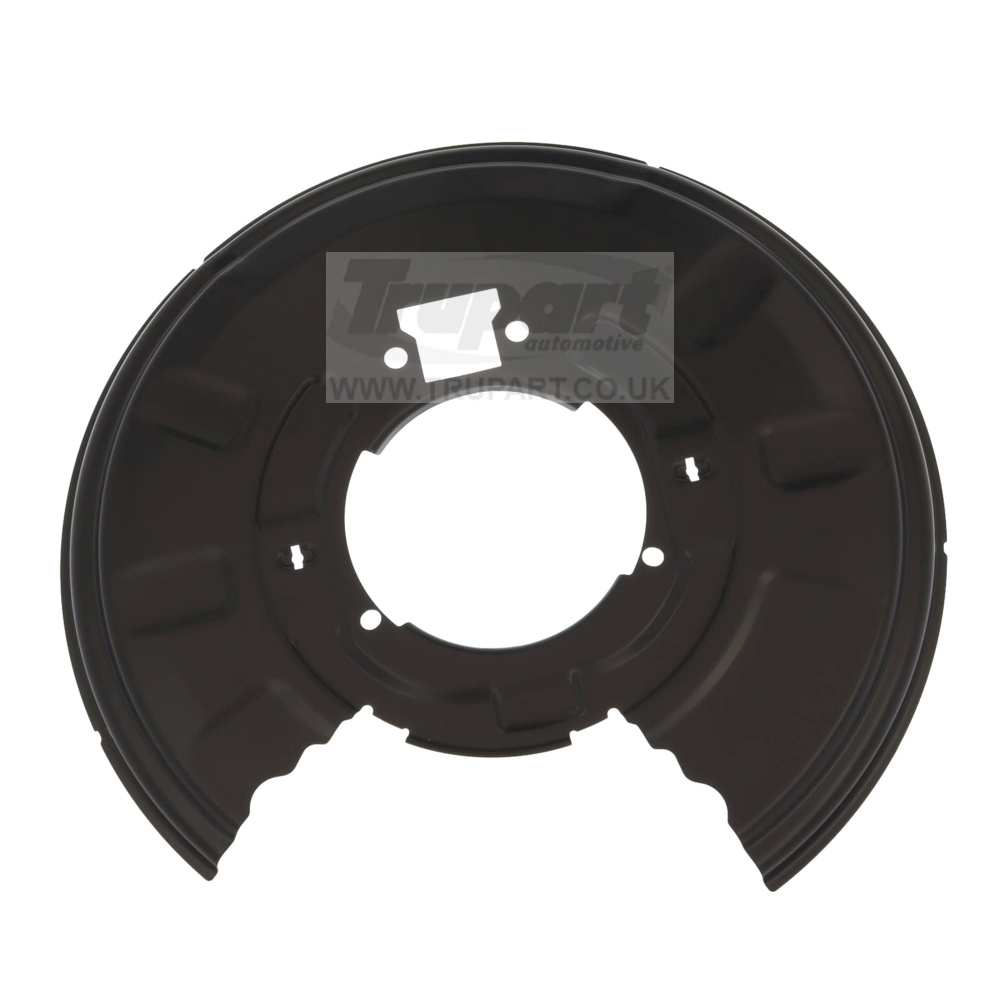

| Brake Disc Shield | RR RH | DS0042 |
|
09/04-05/08 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 2.0 d (175bhp) Diesel (16v) 4WD (1995cc) - (09/07-04/09)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
09/07-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
09/07-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
09/07-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
09/07-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 2.0 i (150bhp) Petrol (16v) 4WD (1995cc) - (09/05-11/06)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
09/05-11/06 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
09/05-11/06 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
09/05-11/06 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
09/05-11/06 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 2.0 xDrive18d (141bhp) Diesel (16v) 4WD (1995cc) - (03/09-03/11)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
03/09-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
03/09-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
03/09-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
03/09-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 2.0 xDrive20d (175bhp) Diesel (16v) 4WD (1995cc) - (08/08-03/11)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
08/08-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
08/08-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
08/08-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
08/08-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 2.5 i (189bhp) Petrol (24v) 4WD (2494cc) - (05/04-11/06)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
05/04-11/06 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
05/04-11/06 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
05/04-11/06 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
05/04-11/06 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 2.5 si (218bhp) Petrol (24v) 4WD (2497cc) - (08/06-04/09)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
08/06-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
08/06-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
08/06-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
08/06-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 2.5 xDrive25i (218bhp) Petrol (24v) 4WD (2497cc) - (08/08-03/11)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
08/08-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
08/08-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
08/08-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
08/08-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 3.0 d (215bhp) Diesel (24v) 4WD (2993cc) - (09/05-04/09)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
09/05-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
09/05-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
09/05-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
09/05-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 3.0 i (231bhp) Petrol (24v) 4WD (2979cc) - (05/04-11/06)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
05/04-11/06 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
05/04-11/06 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
05/04-11/06 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
05/04-11/06 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 3.0 sd (282bhp) Diesel (24v) 4WD (2993cc) - (09/06-04/09)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
09/06-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
09/06-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
09/06-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
09/06-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 3.0 si (272bhp) Petrol (24v) 4WD (2996cc) - (08/06-04/09)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
08/06-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
08/06-04/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
08/06-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
08/06-04/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 3.0 xDrive30d (215bhp) Diesel (24v) 4WD (2993cc) - (08/08-03/11)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
08/08-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
08/08-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
08/08-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
08/08-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 3.0 xDrive30i (272bhp) Petrol (24v) 4WD (2996cc) - (08/08-12/09)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
08/08-12/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
08/08-12/09 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
08/08-12/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
08/08-12/09 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
X3 3.0 xDrive35d (282bhp) Diesel (24v) 4WD (2993cc) - (08/08-03/11)
| Description | Pos | Part No | Date | Note | Shield Diameter (mm) | Centre Diameter (mm) | |
|---|---|---|---|---|---|---|---|
| Brake Disc Shield | FR LH | DS0071 |
|
08/08-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | FR RH | DS0070 |
|
08/08-03/11 | Steel (To suit 325mm Diam. Disc) | 355 | 155 |
| Brake Disc Shield | RR LH | DS0043 |
|
08/08-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
| Brake Disc Shield | RR RH | DS0042 |
|
08/08-03/11 | Steel (To suit 320mm Diam. Disc) | 342 | 110 |
All comparative part numbers shown within our catalogues, on our website, or quoted on our products are for identification and cross referencing purposes only.
