Home Engine Sumps Ford C-Max MPV

(2007-2011) MPV

C-MAX 1.6 (99bhp) Petrol (16v) FWD (1596cc) - (04/07-05/11)

VM0065 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0065 04/07-05/11 Aluminium (Incl. Drain Plug) -

C-MAX 1.6 TDCi 110 (108bhp) Diesel (16v) FWD (1560cc) - (04/07-05/11)

VM0016 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0016 04/07-05/11 Steel (Incl. Drain Plug) -

C-MAX 1.6 TDCi 90 (89bhp) Diesel (16v) FWD (1560cc) - (04/07-12/09)

VM0016 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0016 04/07-12/09 Steel (Incl. Drain Plug) -

C-MAX 1.8 (123bhp) Petrol (16v) FWD (1798cc) - (04/07-05/11)

VM0123 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0123 04/07-05/11 Aluminium (Incl. Drain Plug) -

C-MAX 1.8 Flexifuel (123bhp) Petrol/Bioethanol (16v) FWD (1798cc) - (04/07-05/11)

VM0123 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0123 04/07-05/11 Aluminium (Incl. Drain Plug) -

C-MAX 1.8 TDCi 115 (113bhp) Diesel (8v) FWD (1753cc) - (04/07-05/11)

VM1152 - Main View

Close
Description Part No Date Note Note
Oil Sump VM1152 04/07-05/11 Steel (Incl. Drain Plug) Lower Section

C-MAX 2.0 (143bhp) Petrol (16v) FWD (1999cc) - (04/07-05/11)

VM0123 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0123 04/07-05/11 Aluminium (Incl. Drain Plug) -

C-MAX 2.0 TDCi 110 (108bhp) Diesel (16v) FWD (1997cc) - (07/08-12/09)

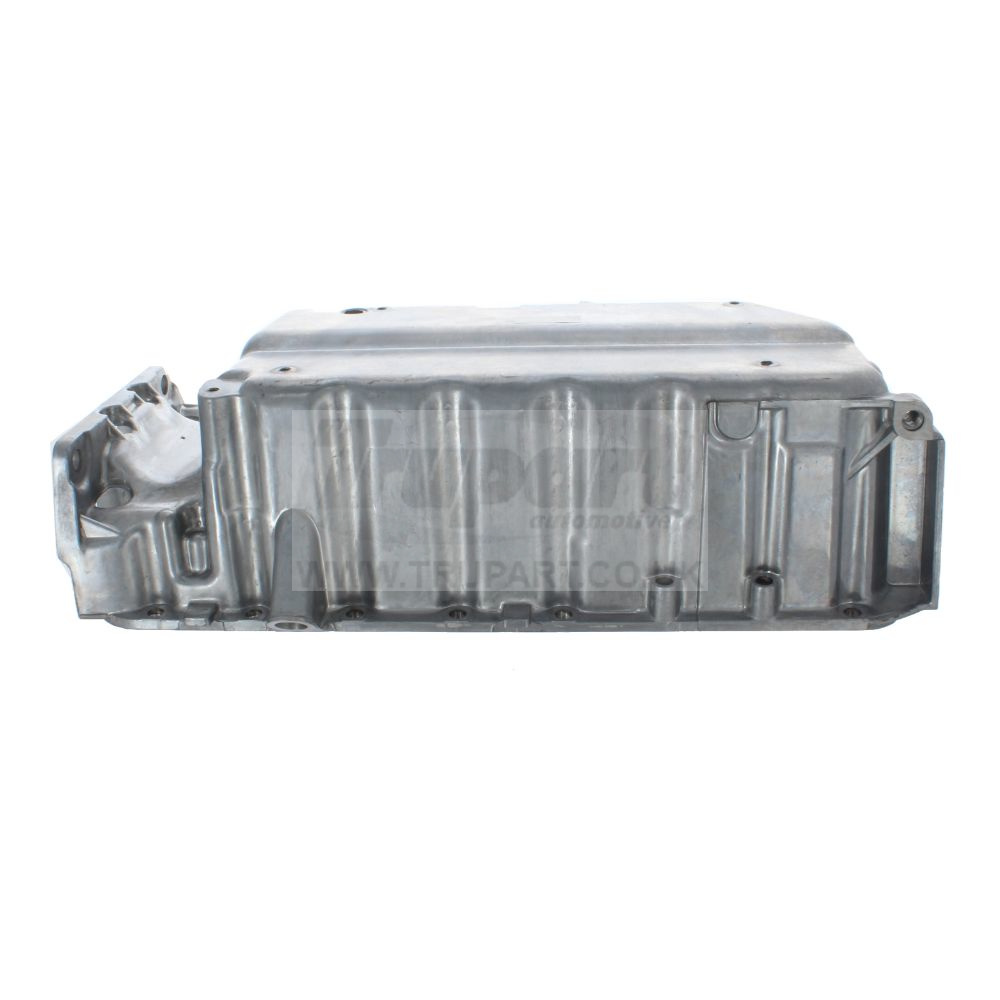

VM0056 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0056 07/08-12/09 Aluminium (Incl. Drain Plug) Excl. Oil Sensor Hole

C-MAX 2.0 TDCi 136 (134bhp) Diesel (16v) FWD (1997cc) - (04/07-05/11)

VM0056 - Main View

Close

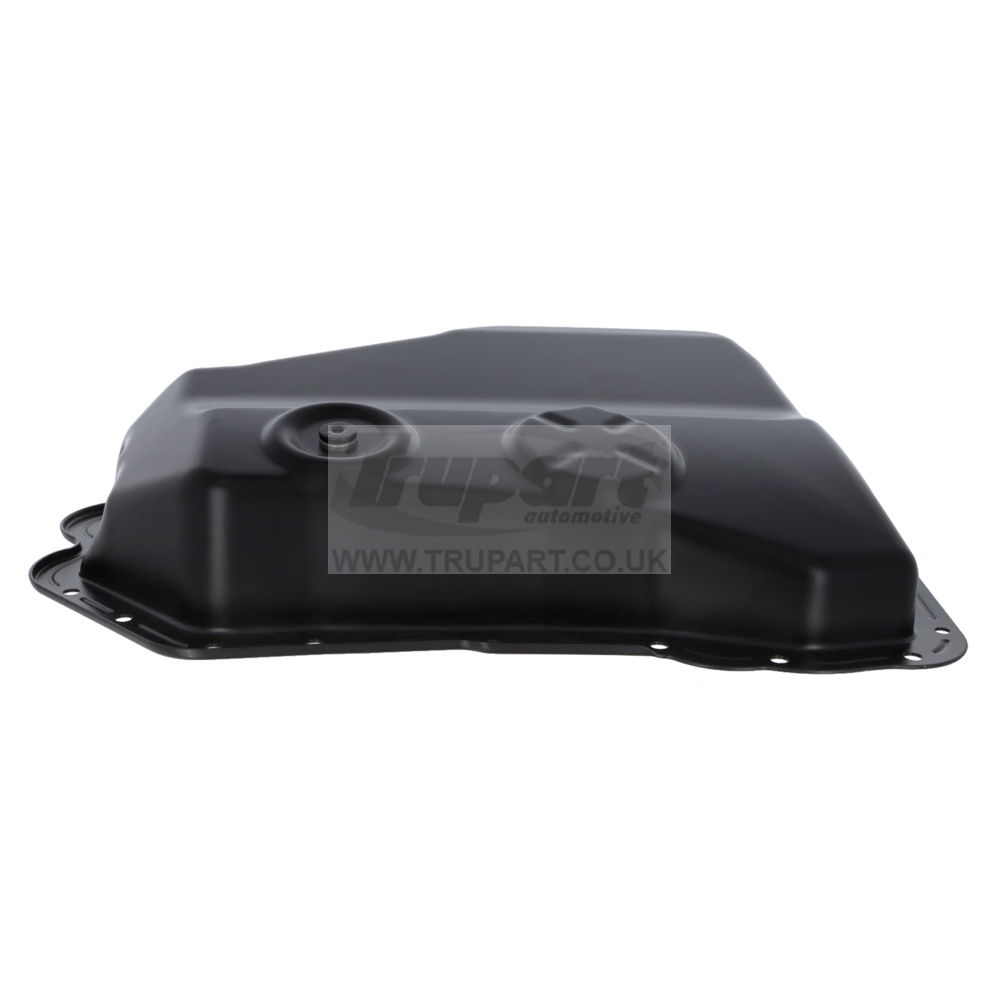

VM0124 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0056 04/07-05/11 Aluminium (Incl. Drain Plug) Excl. Oil Sensor Hole
Oil Sump VM0124 04/07-05/11 Steel (Incl. Drain Plug) Lower Section

(2010-2016) MPV

C-MAX 1.0 EcoBoost 100 (99bhp) Petrol (12v) FWD (999cc) - (09/12-03/16)

VM0097 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0097 09/12-03/16 Aluminium (Incl. Drain Plug) -

C-MAX 1.0 EcoBoost 120 (118bhp) Petrol (12v) FWD (999cc) - (09/12-03/16)

VM0097 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0097 09/12-03/16 Aluminium (Incl. Drain Plug) -

C-MAX 1.6 EcoBoost 150 (148bhp) Petrol (16v) FWD (1596cc) - (09/10-03/16)

VM0164 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0164 09/10-03/16 Aluminium (Incl. Drain Plug) -

C-MAX 1.6 EcoBoost 182 (180bhp) Petrol (16v) FWD (1596cc) - (09/12-03/16)

VM0164 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0164 09/12-03/16 Aluminium (Incl. Drain Plug) -

C-MAX 1.6 TDCi 115 (113bhp) Diesel (8v) FWD (1560cc) - (09/10-03/16)

VM0016 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0016 09/10-03/16 Steel (Incl. Drain Plug) -

C-MAX 1.6 TI-VCT 105 (104bhp) Petrol (16v) FWD (1596cc) - (09/10-03/16)

VM0065 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0065 09/10-03/16 Aluminium (Incl. Drain Plug) -

C-MAX 1.6 TI-VCT 125 (123bhp) Petrol (16v) FWD (1596cc) - (09/10-04/13)

VM0065 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0065 09/10-04/13 Aluminium (Incl. Drain Plug) -

C-MAX 2.0 TDCi 140 (138bhp) Diesel (16v) FWD (1997cc) - (09/10-03/16)

VM0124 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0124 09/10-03/16 Steel (Incl. Drain Plug) Lower Section

C-MAX 2.0 TDCi 140 Powershift (138bhp) Diesel (16v) FWD (1997cc) - (09/10-03/16)

VM0124 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0124 09/10-03/16 Steel (Incl. Drain Plug) Lower Section

C-MAX 2.0 TDCi 163 (161bhp) Diesel (16v) FWD (1997cc) - (09/12-03/16)

VM0124 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0124 09/12-03/16 Steel (Incl. Drain Plug) Lower Section

C-MAX 2.0 TDCi 163 Powershift (161bhp) Diesel (16v) FWD (1997cc) - (09/12-03/16)

VM0124 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0124 09/12-03/16 Steel (Incl. Drain Plug) Lower Section

(2015-2019) MPV

C-MAX 1.0 EcoBoost 100 (99bhp) Petrol (12v) FWD (999cc) - (03/15-12/19)

VM0097 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0097 03/15-12/19 Aluminium (Incl. Drain Plug) -

C-MAX 1.0 EcoBoost 125 (123bhp) Petrol (12v) FWD (999cc) - (03/15-12/19)

VM0097 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0097 03/15-12/19 Aluminium (Incl. Drain Plug) -

C-MAX 2.0 TDCi 150 (148bhp) Diesel (16v) FWD (1997cc) - (04/15-12/18)

VM0186 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0186 04/15-12/18 Plastic (Incl. Drain Plug) -

C-MAX 2.0 TDCi 150 Powershift (148bhp) Diesel (16v) FWD (1997cc) - (04/15-12/18)

VM0186 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0186 04/15-12/18 Plastic (Incl. Drain Plug) -

Grand C-MAX (2010-2016) MPV

Grand C-MAX 1.0 EcoBoost 100 (99bhp) Petrol (12v) FWD (999cc) - (09/12-03/16)

VM0097 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0097 09/12-03/16 Aluminium (Incl. Drain Plug) -

Grand C-MAX 1.0 EcoBoost 120 (118bhp) Petrol (12v) FWD (999cc) - (09/12-03/16)

VM0097 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0097 09/12-03/16 Aluminium (Incl. Drain Plug) -

Grand C-MAX 1.6 EcoBoost 150 (148bhp) Petrol (16v) FWD (1596cc) - (09/10-03/16)

VM0164 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0164 09/10-03/16 Aluminium (Incl. Drain Plug) -

Grand C-MAX 1.6 EcoBoost 182 (180bhp) Petrol (16v) FWD (1596cc) - (09/12-03/16)

VM0164 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0164 09/12-03/16 Aluminium (Incl. Drain Plug) -

Grand C-MAX 1.6 TDCi 115 (113bhp) Diesel (8v) FWD (1560cc) - (09/10-03/16)

VM0016 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0016 09/10-03/16 Steel (Incl. Drain Plug) -

Grand C-MAX 1.6 TI-VCT 125 (123bhp) Petrol (16v) FWD (1596cc) - (09/10-04/13)

VM0065 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0065 09/10-04/13 Aluminium (Incl. Drain Plug) -

Grand C-MAX 2.0 TDCi 140 (138bhp) Diesel (16v) FWD (1997cc) - (09/10-03/16)

VM0124 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0124 09/10-03/16 Steel (Incl. Drain Plug) Lower Section

Grand C-MAX 2.0 TDCi 140 Powershift (138bhp) Diesel (16v) FWD (1997cc) - (09/10-03/16)

VM0124 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0124 09/10-03/16 Steel (Incl. Drain Plug) Lower Section

Grand C-MAX 2.0 TDCi 163 (161bhp) Diesel (16v) FWD (1997cc) - (09/12-03/16)

VM0124 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0124 09/12-03/16 Steel (Incl. Drain Plug) Lower Section

Grand C-MAX 2.0 TDCi 163 Powershift (161bhp) Diesel (16v) FWD (1997cc) - (09/12-03/16)

VM0124 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0124 09/12-03/16 Steel (Incl. Drain Plug) Lower Section

Grand C-MAX (2015-2019) MPV

Grand C-MAX 2.0 TDCi 150 (148bhp) Diesel (16v) FWD (1997cc) - (04/15-12/18)

VM0186 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0186 04/15-12/18 Plastic (Incl. Drain Plug) -

Grand C-MAX 2.0 TDCi 150 Powershift (148bhp) Diesel (16v) FWD (1997cc) - (04/15-12/18)

VM0186 - Main View

Close
Description Part No Date Note Note
Oil Sump VM0186 04/15-12/18 Plastic (Incl. Drain Plug) -

All comparative part numbers shown within our catalogues, on our website, or quoted on our products are for identification and cross referencing purposes only.
