- Please Select a Sub-Model
GG (2002-2008) Estate
6 2.0 (119bhp) Diesel (16v) FWD (1998cc) - (04/02-06/08)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|

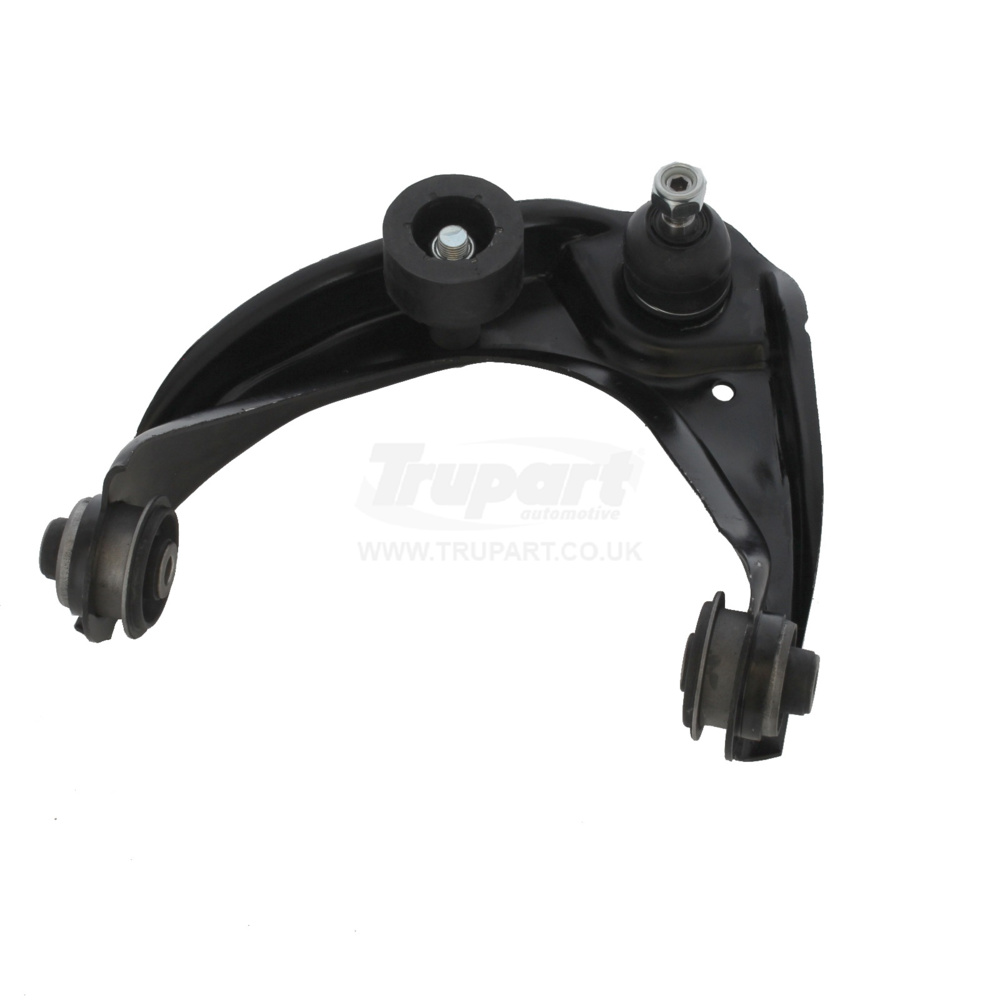

| Suspension Arm | FR Upper LH | SSA2284 |
|
04/02-06/08 | Pressed Steel | Incl. 12.6mm Ball Joint | |

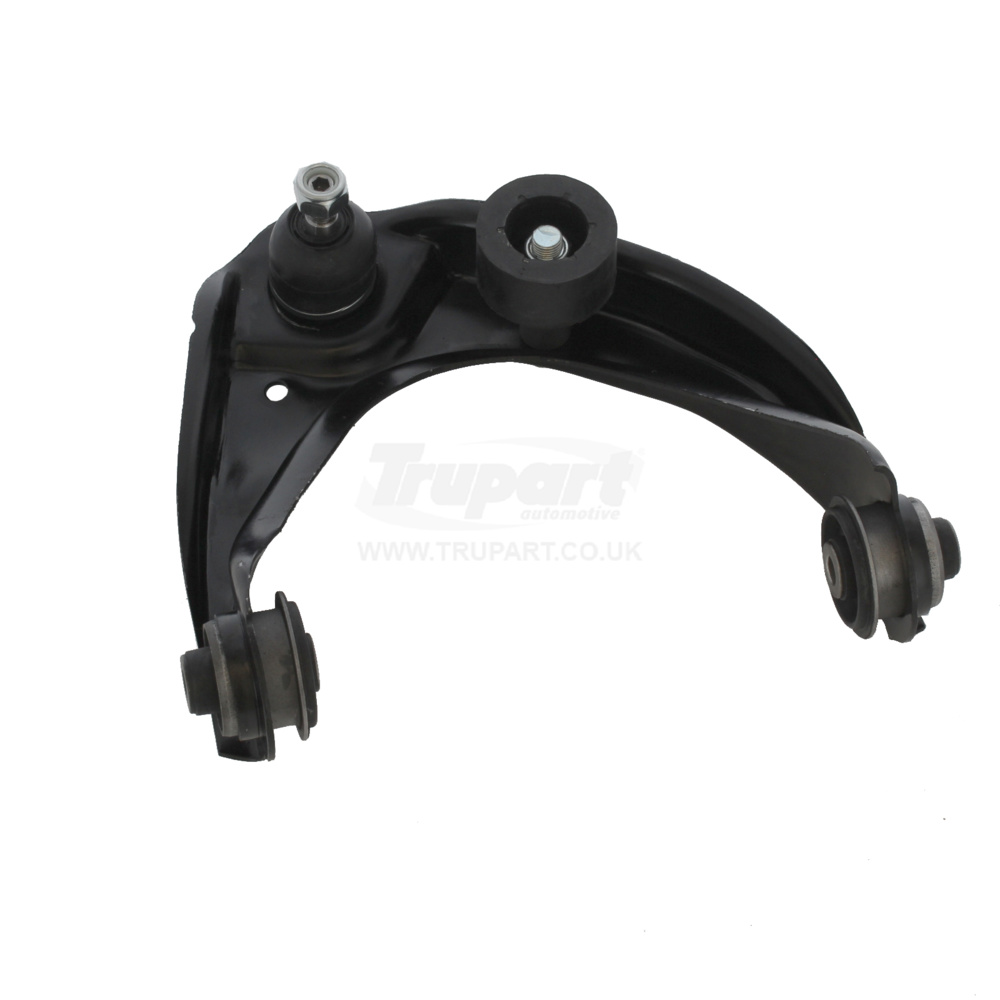

| Suspension Arm | FR Upper RH | SSA2285 |
|
04/02-06/08 | Pressed Steel | Incl. 12.6mm Ball Joint | |

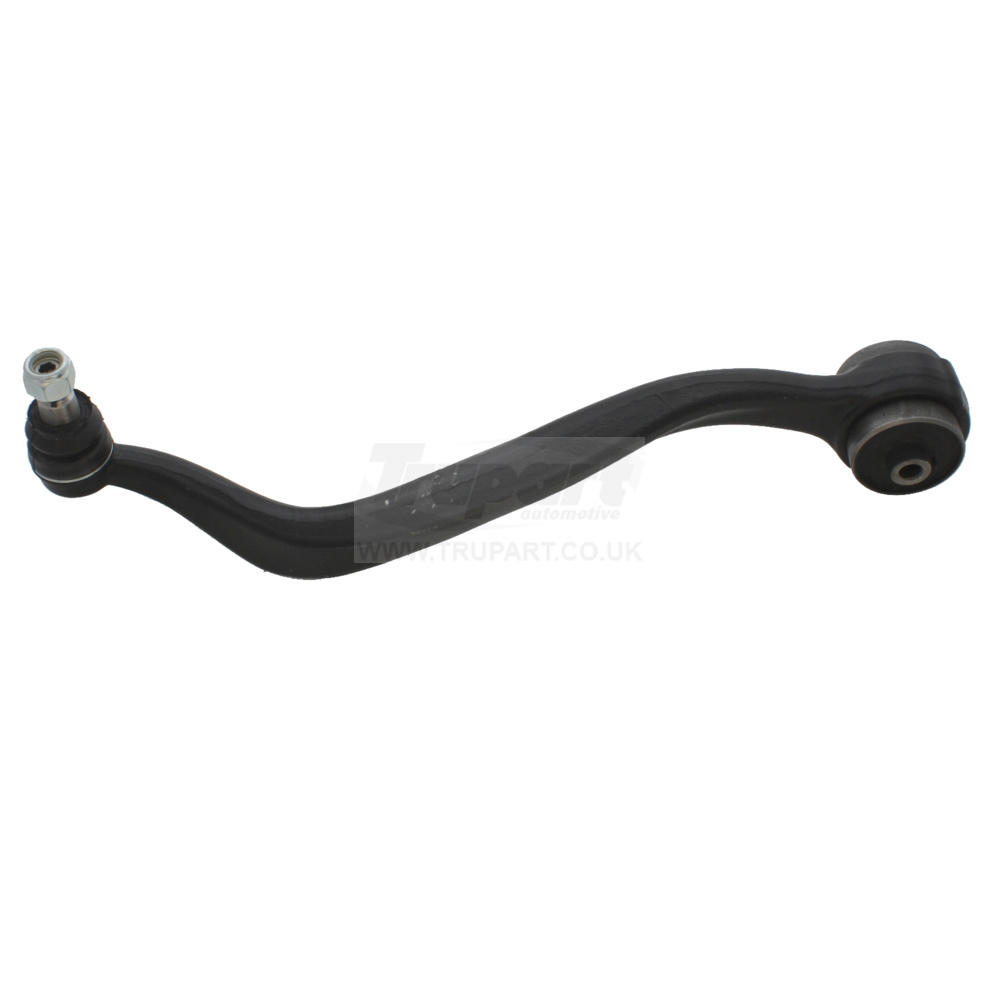

| Suspension Arm | FR Lower LH | SSA3314 |
|
04/02-06/08 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) | |
| Suspension Arm | FR Lower RH | SSA3315 |
|
04/02-06/08 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) |
6 2.0 (134bhp) Diesel (16v) FWD (1998cc) - (06/02-08/05)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Upper LH | SSA2284 |
|
06/02-08/05 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Upper RH | SSA2285 |
|
06/02-08/05 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Lower LH | SSA3314 |
|
06/02-08/05 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) | |
| Suspension Arm | FR Lower RH | SSA3315 |
|
06/02-08/05 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) |
6 2.0 (139bhp) Petrol (16v) FWD (1999cc) - (06/02-08/05)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Upper LH | SSA2284 |
|
06/02-08/05 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Upper RH | SSA2285 |
|
06/02-08/05 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Lower LH | SSA3314 |
|
06/02-08/05 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) | |
| Suspension Arm | FR Lower RH | SSA3315 |
|
06/02-08/05 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) |
6 2.0 (141bhp) Diesel (16v) FWD (1998cc) - (04/05-06/08)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Upper LH | SSA2284 |
|
04/05-06/08 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Upper RH | SSA2285 |
|
04/05-06/08 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Lower LH | SSA3314 |
|
04/05-06/08 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) | |
| Suspension Arm | FR Lower RH | SSA3315 |
|
04/05-06/08 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) |
6 2.0 (145bhp) Petrol (16v) FWD (1999cc) - (08/05-06/08)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Upper LH | SSA2284 |
|
08/05-06/08 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Upper RH | SSA2285 |
|
08/05-06/08 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Lower LH | SSA3314 |
|
08/05-06/08 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) | |
| Suspension Arm | FR Lower RH | SSA3315 |
|
08/05-06/08 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) |
6 2.3 (164bhp) Petrol (16v) 4WD (2261cc) - (11/02-08/05)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Upper LH | SSA2284 |
|
11/02-08/05 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Upper RH | SSA2285 |
|
11/02-08/05 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Lower LH | SSA3314 |
|
11/02-08/05 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) | |
| Suspension Arm | FR Lower RH | SSA3315 |
|
11/02-08/05 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) |
6 2.3 (164bhp) Petrol (16v) FWD (2261cc) - (06/04-08/05)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Upper LH | SSA2284 |
|
06/04-08/05 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Upper RH | SSA2285 |
|
06/04-08/05 | Pressed Steel | Incl. 12.6mm Ball Joint | |
| Suspension Arm | FR Lower LH | SSA3314 |
|
06/04-08/05 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) | |
| Suspension Arm | FR Lower RH | SSA3315 |
|
06/04-08/05 | Rear of Wheel (Curved) | Cast Iron (Incl. 20mm Ball Joint) |
GH (2007-2013) Estate
6 2.0 (138bhp) Diesel (16v) FWD (1998cc) - (03/08-08/09)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|

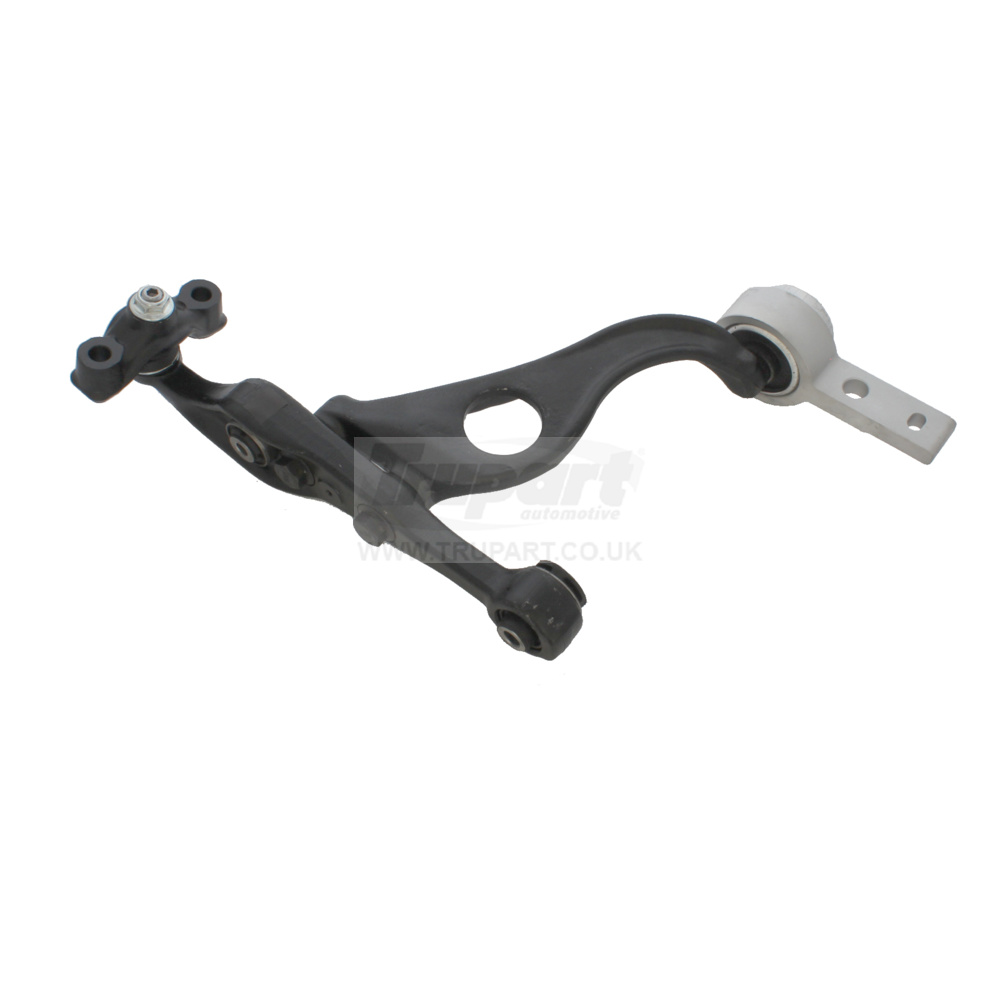

| Suspension Arm | FR Lower LH | SSA7139 |
|
03/08-08/09 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |

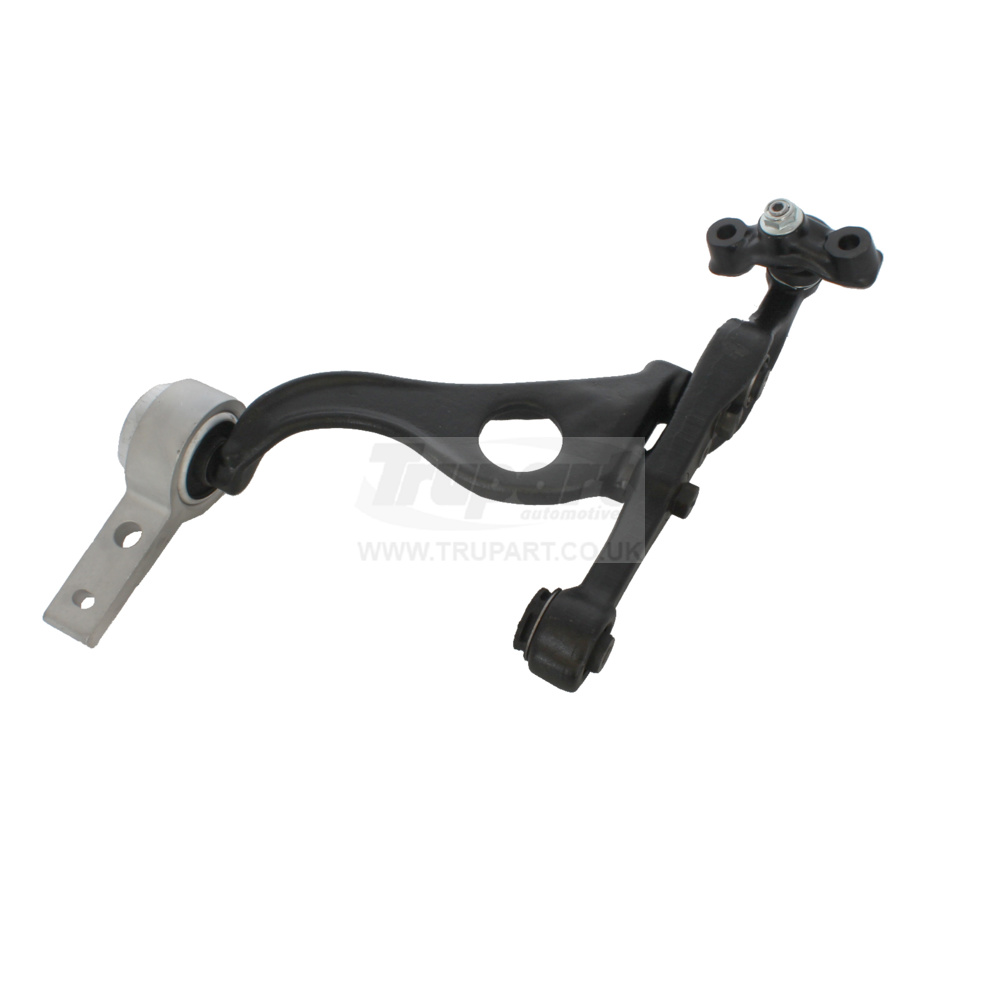

| Suspension Arm | FR Lower RH | SSA7140 |
|
03/08-08/09 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.0 (145bhp) Petrol (16v) FWD (1999cc) - (03/08-12/10)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7139 |
|
03/08-12/10 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7140 |
|
03/08-12/10 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.0 DISI (153bhp) Petrol (16v) FWD (1999cc) - (04/10-04/13)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7139 |
|
04/10-04/13 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7140 |
|
04/10-04/13 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.2 (161bhp) Diesel (16v) FWD (2184cc) - (01/09-04/13)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7139 |
|
01/09-04/13 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7140 |
|
01/09-04/13 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.2 (178bhp) Diesel (16v) FWD (2184cc) - (04/10-04/13)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7139 |
|
04/10-04/13 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7140 |
|
04/10-04/13 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.2 (183bhp) Diesel (16v) FWD (2184cc) - (01/09-12/10)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7139 |
|
01/09-12/10 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7140 |
|
01/09-12/10 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.5 (168bhp) Petrol (16v) FWD (2488cc) - (03/08-04/13)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7139 |
|
03/08-04/13 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7140 |
|
03/08-04/13 | Cast Iron (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
GJ (2012-2017) Estate
6 2.0 SKYACTIV-G 145 (143bhp) Petrol (16v) FWD (1998cc) - (11/12-04/17)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
11/12-04/17 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
11/12-04/17 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.0 SKYACTIV-G 165 (163bhp) Petrol (16v) FWD (1998cc) - (11/12-04/17)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
11/12-04/17 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
11/12-04/17 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.2 SKYACTIV-D 150 (148bhp) Diesel (16v) FWD (2191cc) - (11/12-04/17)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
11/12-04/17 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
11/12-04/17 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.2 SKYACTIV-D 175 (173bhp) Diesel (16v) FWD (2191cc) - (11/12-04/17)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
11/12-04/17 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
11/12-04/17 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
GL (2016-2023) Estate
6 2.2 SKYACTIV-D 150 (148bhp) Diesel (16v) FWD (2191cc) - (04/16-09/21)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
04/16-09/21 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
04/16-09/21 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.2 SKYACTIV-D 175 (173bhp) Diesel (16v) FWD (2191cc) - (04/16-06/19)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
04/16-06/19 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
04/16-06/19 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.2 SKYACTIV-D 184 (181bhp) Diesel (16v) FWD (2191cc) - (06/18-09/21)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
06/18-09/21 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
06/18-09/21 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.2 SKYACTIV-G 145 (143bhp) Petrol (16v) FWD (1998cc) - (04/16-12/23)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
04/16-12/23 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
04/16-12/23 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.2 SKYACTIV-G 165 (164bhp) Petrol (16v) FWD (1998cc) - (04/16-12/23)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
04/16-12/23 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
04/16-12/23 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
6 2.5 SKYACTIV-G 195 (192bhp) Petrol (16v) FWD (2488cc) - (06/18-04/23)
| Description | Pos | Part No | Date | Note | Note | ||
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA7431 |
|
06/18-04/23 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket | |
| Suspension Arm | FR Lower RH | SSA7432 |
|
06/18-04/23 | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
All comparative part numbers shown within our catalogues, on our website, or quoted on our products are for identification and cross referencing purposes only.
