- Please Select a Sub-Model
(2006-2017) Saloon
S80 1.6 D2 (113bhp) Diesel (8v) FWD (1560cc) - (06/12-04/17)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
06/12-04/17 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |

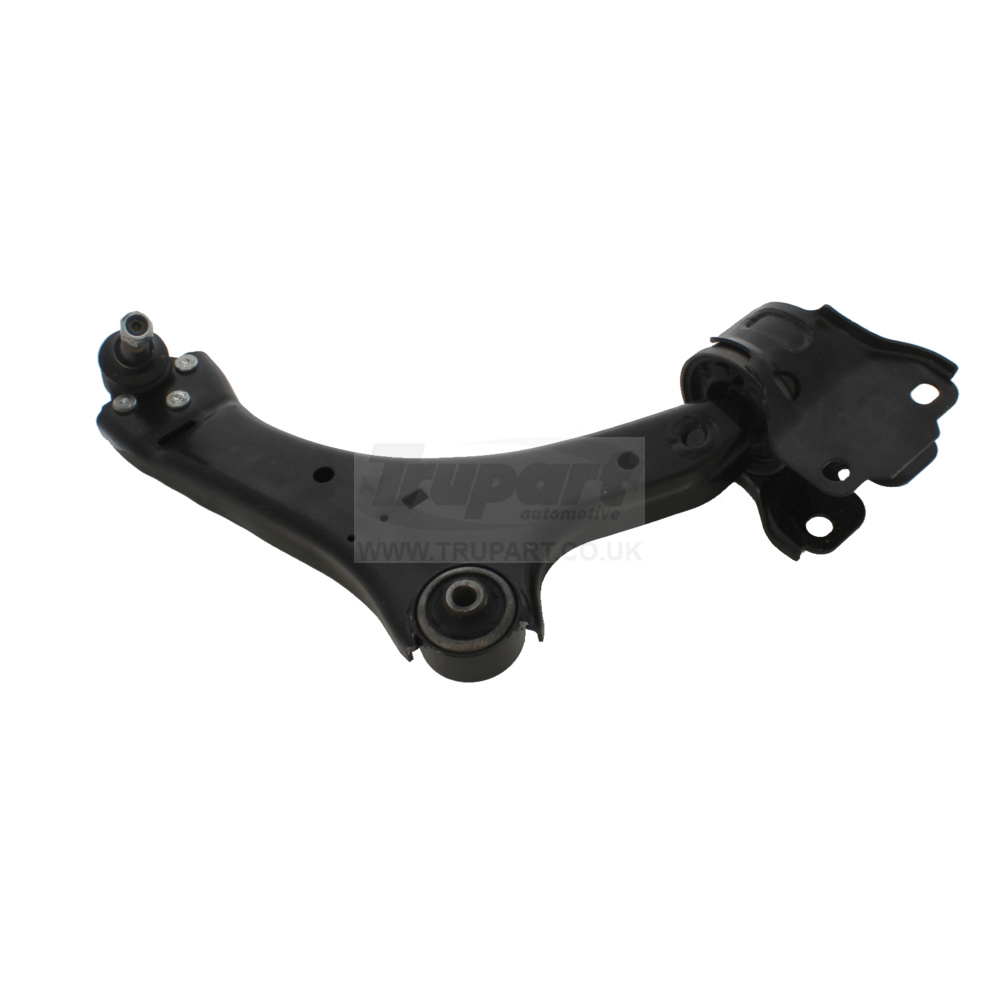

| Suspension Arm | FR Lower RH | SSA8306 |
|
06/12-04/17 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |

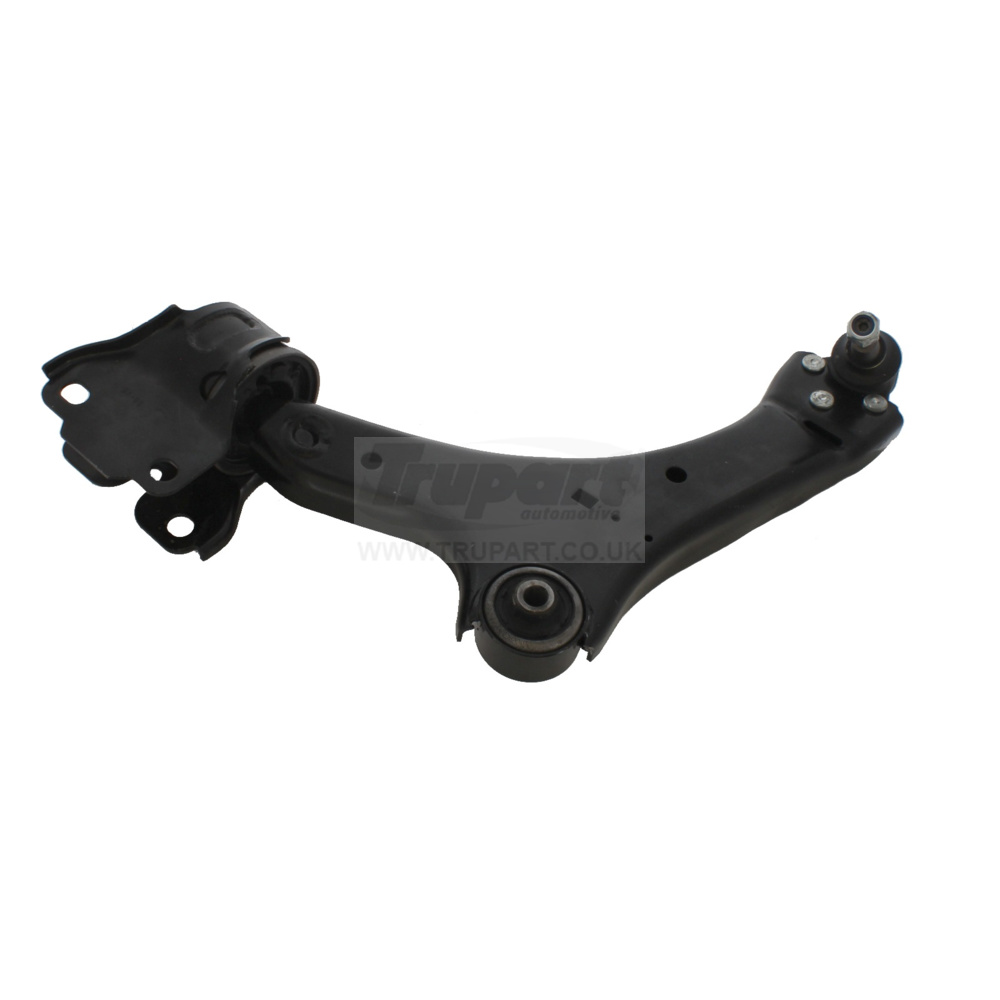

| Suspension Arm | FR Lower LH | SSA2339 |
|
06/12-04/17 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
06/12-04/17 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
06/12-04/17 | Cast Iron | Curved | |

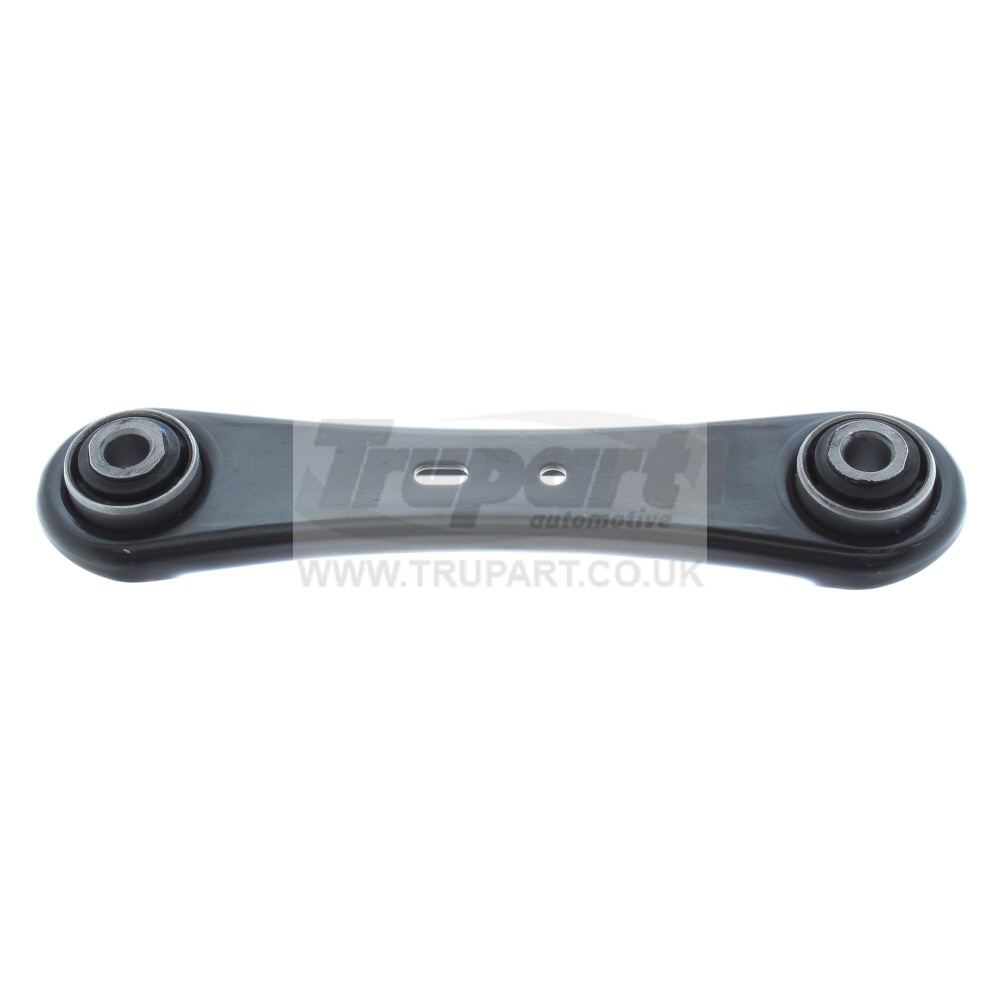

| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
06/12-04/17 | Pressed Steel | - |
S80 1.6 DRIVe (108bhp) Diesel (16v) FWD (1560cc) - (08/09-04/11)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
08/09-04/11 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
08/09-04/11 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
08/09-04/11 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
08/09-04/11 | Pressed Steel | - | |
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-04/11 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-04/11 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
S80 1.6 DRIVe (113bhp) Diesel (8v) FWD (1560cc) - (02/11-12/12)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
02/11-12/12 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
02/11-12/12 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
02/11-12/12 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
02/11-12/12 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
02/11-12/12 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
02/11-12/12 | Pressed Steel | - |
S80 1.6 DRIVe Powershift (113bhp) Diesel (8v) FWD (1560cc) - (02/11-12/12)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
02/11-12/12 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
02/11-12/12 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
02/11-12/12 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
02/11-12/12 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
02/11-12/12 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
02/11-12/12 | Pressed Steel | - |
S80 1.6 T4 (178bhp) Petrol (16v) FWD (1596cc) - (09/10-03/13)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
09/10-03/13 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
09/10-03/13 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
09/10-03/13 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
09/10-03/13 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
09/10-03/13 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
09/10-03/13 | Pressed Steel | - |
S80 1.6 T4 Powershift (178bhp) Petrol (16v) FWD (1596cc) - (09/10-03/13)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
09/10-03/13 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
09/10-03/13 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
09/10-03/13 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
09/10-03/13 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
09/10-03/13 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
09/10-03/13 | Pressed Steel | - |
S80 2.0 (134bhp) Diesel (16v) FWD (1997cc) - (08/07-12/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
08/07-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
08/07-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
08/07-12/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
08/07-12/10 | Pressed Steel | - | |
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
S80 2.0 (143bhp) Petrol (16v) FWD (1999cc) - (08/07-04/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
08/07-04/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
08/07-04/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
08/07-04/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
08/07-04/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
08/07-04/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
08/07-04/10 | Pressed Steel | - |
S80 2.0 D3 (134bhp) Diesel (20v) FWD (1984cc) - (06/12-04/17)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
06/12-04/17 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
06/12-04/17 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
06/12-04/17 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
06/12-04/17 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
06/12-04/17 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
06/12-04/17 | Pressed Steel | - |
S80 2.0 D3 (161bhp) Diesel (20v) FWD (1984cc) - (05/10-12/12)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-12/12 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-12/12 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
05/10-12/12 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
05/10-12/12 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
05/10-12/12 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
05/10-12/12 | Pressed Steel | - |
S80 2.0 D4 (161bhp) Diesel (20v) FWD (1984cc) - (06/12-04/14)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
06/12-04/14 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
06/12-04/14 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
06/12-04/14 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
06/12-04/14 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
06/12-04/14 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
06/12-04/14 | Pressed Steel | - |
S80 2.0 D4 (178bhp) Diesel (16v) FWD (1969cc) - (10/13-04/17)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
10/13-04/17 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
10/13-04/17 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
10/13-04/17 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
10/13-04/17 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
10/13-04/17 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
10/13-04/17 | Pressed Steel | - |
S80 2.0 FlexiFuel (143bhp) Petrol/Bioethanol (16v) FWD (1999cc) - (08/07-12/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
08/07-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
08/07-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
08/07-12/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
08/07-12/10 | Pressed Steel | - | |
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
S80 2.0 T5 (237bhp) Petrol (16v) FWD (1999cc) - (09/10-03/13)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
09/10-03/13 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
09/10-03/13 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
09/10-03/13 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
09/10-03/13 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
09/10-03/13 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
09/10-03/13 | Pressed Steel | - |
S80 2.4 D (163bhp) Diesel (20v) FWD (2400cc) - (07/06-10/09)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
07/06-10/09 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
07/06-10/09 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
07/06-10/09 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
07/06-10/09 | Pressed Steel | - |
S80 2.4 D (173bhp) Diesel (20v) FWD (2400cc) - (06/09-12/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
06/09-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
06/09-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
06/09-12/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
06/09-12/10 | Pressed Steel | - | |
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
S80 2.4 D5 (185bhp) Diesel (20v) 4WD (2401cc) - (08/07-04/08)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
08/07-04/08 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
08/07-04/08 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
08/07-04/08 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
08/07-04/08 | Pressed Steel | - |
S80 2.4 D5 (185bhp) Diesel (20v) FWD (2401cc) - (07/06-10/09)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
07/06-10/09 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
07/06-10/09 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
07/06-10/09 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
07/06-10/09 | Pressed Steel | - |
S80 2.4 D5 (202bhp) Diesel (20v) FWD (2400cc) - (06/09-04/11)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
06/09-04/11 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
06/09-04/11 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
06/09-04/11 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
06/09-04/11 | Pressed Steel | - | |
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-04/11 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-04/11 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
S80 2.4 D5 (213bhp) Diesel (20v) 4WD (2400cc) - (05/10-12/12)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-12/12 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-12/12 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
05/10-12/12 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
05/10-12/12 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
05/10-12/12 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
05/10-12/12 | Pressed Steel | - |
S80 2.4 D5 (213bhp) Diesel (20v) FWD (2400cc) - (10/10-04/17)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
10/10-04/17 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
10/10-04/17 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
10/10-04/17 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
10/10-04/17 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
10/10-04/17 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
10/10-04/17 | Pressed Steel | - |
S80 2.5 FlexiFuel (200bhp) Petrol/Bioethanol (20v) FWD (2521cc) - (03/08-04/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
03/08-04/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
03/08-04/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
03/08-04/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
03/08-04/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
03/08-04/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
03/08-04/10 | Pressed Steel | - |
S80 2.5 FlexiFuel (228bhp) Petrol/Bioethanol (20v) FWD (2521cc) - (08/09-12/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
08/09-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
08/09-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
08/09-12/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
08/09-12/10 | Pressed Steel | - | |
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
S80 2.5 T (197bhp) Petrol (20v) FWD (2521cc) - (07/06-04/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
07/06-04/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
07/06-04/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
07/06-04/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
07/06-04/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
07/06-04/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
07/06-04/10 | Pressed Steel | - |
S80 2.5 T (228bhp) Petrol (20v) FWD (2521cc) - (08/09-12/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
08/09-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
08/09-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
08/09-12/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
08/09-12/10 | Pressed Steel | - | |
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
S80 3.0 T6 (300bhp) Petrol (24v) 4WD (2953cc) - (09/10-04/14)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
09/10-04/14 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
09/10-04/14 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
09/10-04/14 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
09/10-04/14 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
09/10-04/14 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
09/10-04/14 | Pressed Steel | - |
S80 3.2 (235bhp) Petrol (24v) 4WD (3192cc) - (03/07-04/08)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
03/07-04/08 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
03/07-04/08 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
03/07-04/08 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
03/07-04/08 | Pressed Steel | - |
S80 3.2 (235bhp) Petrol (24v) FWD (3192cc) - (07/06-04/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA8307 |
|
07/06-04/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
07/06-04/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower LH | SSA2339 |
|
07/06-04/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
07/06-04/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
07/06-04/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
07/06-04/10 | Pressed Steel | - |
S80 4.4 (311bhp) Petrol (32v) 4WD (4414cc) - (07/06-12/10)
| Description | Pos | Part No | Date | Note | Note | Note | |
|---|---|---|---|---|---|---|---|
| Suspension Arm | FR Lower LH | SSA2339 |
|
07/06-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA2340 |
|
07/06-12/10 | (Up to Chassis No. 213026) | Pressed Steel (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | RR Upper LH+RH | SSA7036 |
|
07/06-12/10 | Cast Iron | Curved | |
| Suspension Arm | RR Lower LH+RH | SSA6642 |
|
07/06-12/10 | Pressed Steel | - | |
| Suspension Arm | FR Lower LH | SSA8307 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
| Suspension Arm | FR Lower RH | SSA8306 |
|
05/10-12/10 | (From Chassis No. 213027->) | Aluminium (Incl. Ball Joint) | Incl. Rear Mounting Bush & Bracket |
All comparative part numbers shown within our catalogues, on our website, or quoted on our products are for identification and cross referencing purposes only.
