- Please Select a Sub-Model
8R (2012-2017) ATV/SUV
SQ5 3.0 BiTDI Plus Tiptronic (335bhp) Diesel (24v) 4WD (2967cc) - (09/15-12/17)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|

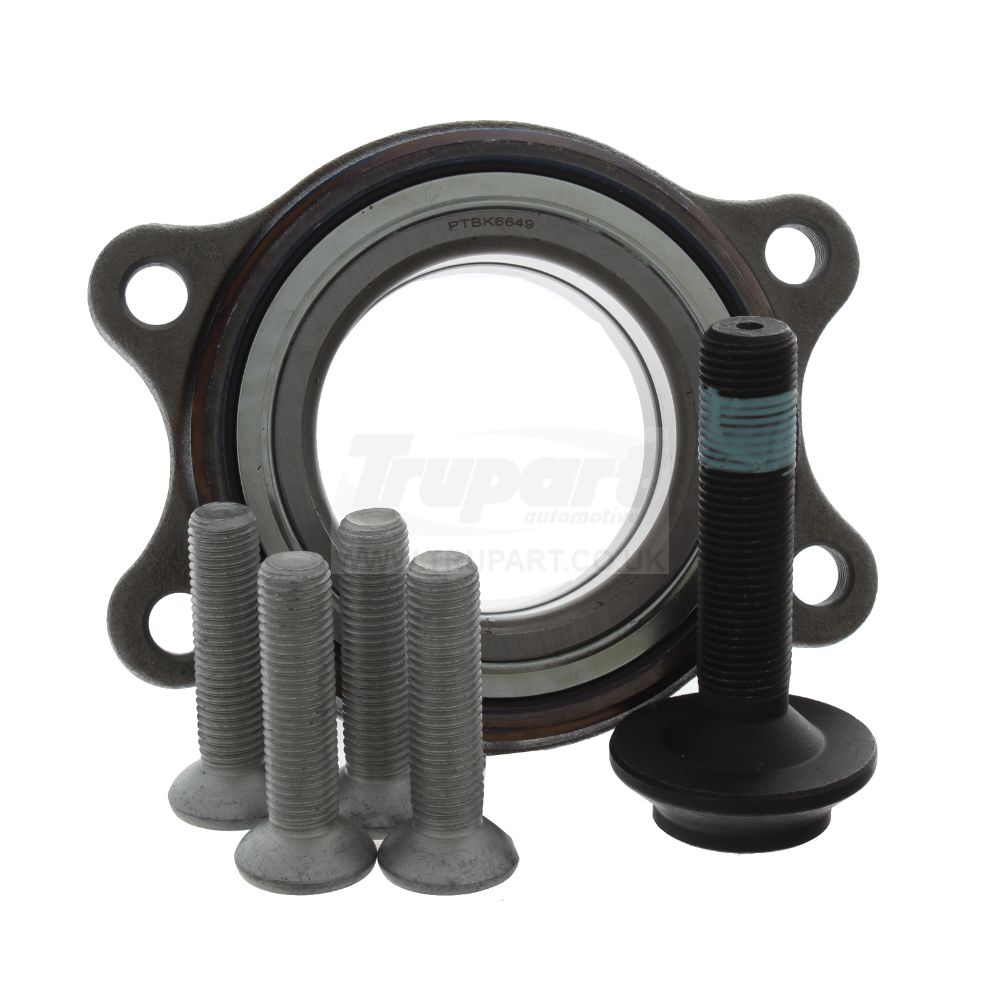

| Hub Bearing Kit | FR | TBK6649 |
|
09/15-12/17 | ASB Bearing (ABS), I/D 62mm : Flange 102mm : Width 45mm | |

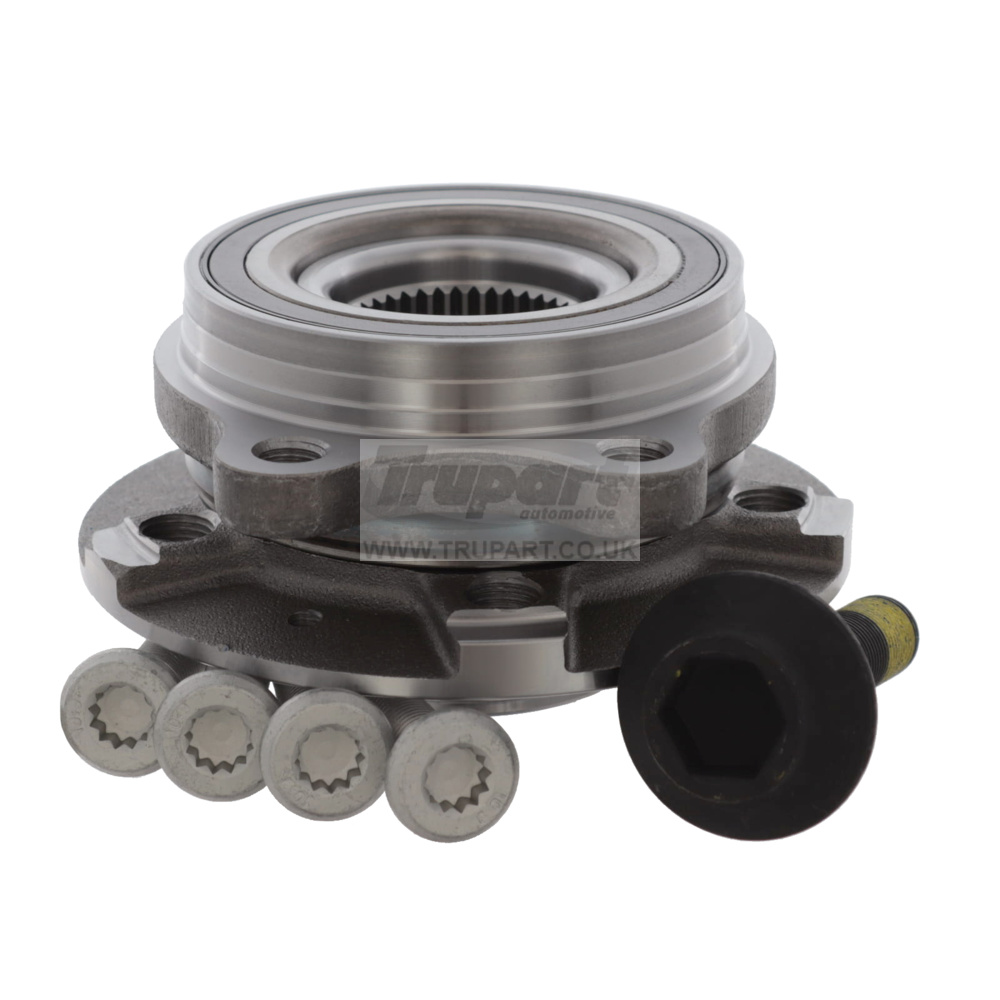

| Hub Bearing Kit (Incl. Hub Flange) | FR | TBK9949 |
|
09/15-12/17 | Hub Bearing Including Flange | Combination of TBK6649 (Bearing Kit) & Hub Flange, I/D 62mm : Flange 142mm : Integrated ABS Sensor |
| Hub Bearing Kit | RR | TBK6649 |
|
09/15-12/17 | ASB Bearing (ABS), I/D 62mm : Flange 102mm : Width 45mm | |
| Hub Bearing Kit (Incl. Hub Flange) | RR | TBK9949 |
|
09/15-12/17 | Hub Bearing Including Flange | Combination of TBK6649 (Bearing Kit) & Hub Flange, I/D 62mm : Flange 142mm : Integrated ABS Sensor |
SQ5 3.0 BiTDI Tiptronic (309bhp) Diesel (24v) 4WD (2967cc) - (05/12-04/16)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6649 |
|
05/12-04/16 | ASB Bearing (ABS), I/D 62mm : Flange 102mm : Width 45mm | |
| Hub Bearing Kit (Incl. Hub Flange) | FR | TBK9949 |
|
05/12-04/16 | Hub Bearing Including Flange | Combination of TBK6649 (Bearing Kit) & Hub Flange, I/D 62mm : Flange 142mm : Integrated ABS Sensor |
| Hub Bearing Kit | RR | TBK6649 |
|
05/12-04/16 | ASB Bearing (ABS), I/D 62mm : Flange 102mm : Width 45mm | |
| Hub Bearing Kit (Incl. Hub Flange) | RR | TBK9949 |
|
05/12-04/16 | Hub Bearing Including Flange | Combination of TBK6649 (Bearing Kit) & Hub Flange, I/D 62mm : Flange 142mm : Integrated ABS Sensor |
SQ5 3.0 BiTDI Tiptronic (322bhp) Diesel (24v) 4WD (2967cc) - (09/15-12/17)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6649 |
|
09/15-12/17 | ASB Bearing (ABS), I/D 62mm : Flange 102mm : Width 45mm | |
| Hub Bearing Kit (Incl. Hub Flange) | FR | TBK9949 |
|
09/15-12/17 | Hub Bearing Including Flange | Combination of TBK6649 (Bearing Kit) & Hub Flange, I/D 62mm : Flange 142mm : Integrated ABS Sensor |
| Hub Bearing Kit | RR | TBK6649 |
|
09/15-12/17 | ASB Bearing (ABS), I/D 62mm : Flange 102mm : Width 45mm | |
| Hub Bearing Kit (Incl. Hub Flange) | RR | TBK9949 |
|
09/15-12/17 | Hub Bearing Including Flange | Combination of TBK6649 (Bearing Kit) & Hub Flange, I/D 62mm : Flange 142mm : Integrated ABS Sensor |
B9 (FY) (2016-2023) ATV/SUV
SQ5 3.0 TDI (337bhp) Diesel (24v) 4WD (2967cc) - (11/20-12/23)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK7131 |
|
11/20-12/23 | From VIN No. FY-H-000001-> | I/D 61mm : O/D 126mm : Width 41mm, 96 Teeth : Incl. Integrated ABS Sensor |
| Hub Bearing Kit | RR | TBK7131 |
|
11/20-12/23 | From VIN No. FY-H-000001-> | I/D 61mm : O/D 126mm : Width 41mm, 96 Teeth : Incl. Integrated ABS Sensor |
SQ5 3.0 TDI (342bhp) Diesel (24v) 4WD (2967cc) - (06/19-12/21)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK7131 |
|
06/19-12/21 | From VIN No. FY-H-000001-> | I/D 61mm : O/D 126mm : Width 41mm, 96 Teeth : Incl. Integrated ABS Sensor |
| Hub Bearing Kit | RR | TBK7131 |
|
06/19-12/21 | From VIN No. FY-H-000001-> | I/D 61mm : O/D 126mm : Width 41mm, 96 Teeth : Incl. Integrated ABS Sensor |
SQ5 3.0 TFSI (349bhp) Petrol (24v) 4WD (2995cc) - (12/16-12/18)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK7131 |
|
12/16-12/18 | From VIN No. FY-H-000001-> | I/D 61mm : O/D 126mm : Width 41mm, 96 Teeth : Incl. Integrated ABS Sensor |
| Hub Bearing Kit | RR | TBK7131 |
|
12/16-12/18 | From VIN No. FY-H-000001-> | I/D 61mm : O/D 126mm : Width 41mm, 96 Teeth : Incl. Integrated ABS Sensor |
All comparative part numbers shown within our catalogues, on our website, or quoted on our products are for identification and cross referencing purposes only.
