- Please Select a Sub-Model
MK 3 (1986-1991) Van
Transit 1.6 (65bhp) Petrol (8v) RWD (1593cc) - (12/85-12/91)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | RR | TBK553 |
|
12/85-12/91 | 100-130-190 | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.0 (78bhp) Petrol (8v) RWD (1993cc) - (12/85-12/91)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | RR | TBK553 |
|
12/85-12/91 | 100-130-190 | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.0 Catalyst (77bhp) Petrol (8v) RWD (1993cc) - (08/90-12/91)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | RR | TBK553 |
|
08/90-12/91 | 100-130-190 | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.5 (68bhp) Diesel (8v) RWD (2496cc) - (12/85-12/91)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | RR | TBK553 |
|
12/85-12/91 | 100-130-190 | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
MK 4 (1991-1994) Van
Transit 2.0 (87bhp) Petrol (8v) RWD (1994cc) - (12/91-12/94)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
12/91-12/94 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.0 Catalyst (96bhp) Petrol (8v) RWD (1994cc) - (12/91-12/94)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
12/91-12/94 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.5 (68bhp) Diesel (8v) RWD (2496cc) - (12/91-12/94)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
12/91-12/94 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.5 Di Turbo (84bhp) Diesel (8v) RWD (2496cc) - (11/92-12/94)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
11/92-12/94 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.5 Turbo (79bhp) Diesel (8v) RWD (2496cc) - (12/91-12/92)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
12/91-12/92 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
MK 5 (1994-2000) Van
Transit 2.0 (113bhp) Petrol (8v) RWD (1998cc) - (09/94-12/00)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
09/94-12/00 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.0 Dual Fuel (113bhp) Petrol/CNG (8v) RWD (1998cc) - (06/99-12/00)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
06/99-12/00 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.0 Dual Fuel (113bhp) Petrol/LPG (8v) RWD (1998cc) - (06/99-12/00)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
06/99-12/00 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.5 (69bhp) Diesel (8v) RWD (2496cc) - (09/94-12/00)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
09/94-12/00 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.5 (75bhp) Diesel (8v) RWD (2496cc) - (07/95-12/00)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
07/95-12/00 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.5 Di Turbo (84bhp) Diesel (8v) RWD (2496cc) - (09/94-12/00)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
09/94-12/00 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
Transit 2.5 Turbo (113bhp) Diesel (8v) RWD (2496cc) - (06/99-12/00)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Wheel Bearing Kit | FR | TBK745 |
|
06/99-12/00 | (I/D 35mm : O/D 62mm : Width 19mm) x 1, (I/D 19mm : O/D 45mm : Width 17mm) x 1 |
MK 6 (2000-2006) Van
Transit 2.0 TDCi (123bhp) Diesel (16v) FWD (1998cc) - (11/03-08/06)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
11/03-08/06 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
11/03-08/06 | FWD (1.0 Tonne) | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK1259 |
|
11/03-08/06 | FWD (1.0 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
Transit 2.0 TDdi (84bhp) Diesel (16v) FWD (1998cc) - (07/03-08/06)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
07/03-08/06 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
07/03-08/06 | FWD (1.0 Tonne) | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK1259 |
|
07/03-08/06 | FWD (1.0 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
Transit 2.0 TDdi (99bhp) Diesel (16v) FWD (1998cc) - (10/00-08/06)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
10/00-08/06 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
10/00-08/06 | FWD (1.0 Tonne) | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK1259 |
|
10/00-08/06 | FWD (1.0 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
Transit 2.0 Turbo (123bhp) Diesel (16v) FWD (1998cc) - (06/01-12/03)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
06/01-12/03 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
06/01-12/03 | FWD (1.0 Tonne) | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK1259 |
|
06/01-12/03 | FWD (1.0 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
Transit 2.0 Turbo (74bhp) Diesel (16v) FWD (1998cc) - (10/00-12/03)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
10/00-12/03 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
10/00-12/03 | FWD (1.0 Tonne) | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK1259 |
|
10/00-12/03 | FWD (1.0 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
Transit 2.3 (143bhp) Petrol (16v) RWD (2295cc) - (03/01-08/06)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
03/01-08/06 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
03/01-08/06 | RWD (Single Rear Whls) 1.0 Tonne | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK6529 |
|
03/01-08/06 | RWD (Twin Rear Whls) Dana Axle | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
| Wheel Bearing Kit | RR | TBK553 |
|
03/01-08/06 | RWD (Twin Rear Whls) Ford Axle | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.3 Dual Fuel (143bhp) Petrol/LPG (16v) RWD (2295cc) - (03/02-08/06)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
03/02-08/06 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
03/02-08/06 | RWD (Single Rear Whls) 1.0 Tonne | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK6529 |
|
03/02-08/06 | RWD (Twin Rear Whls) Dana Axle | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
| Wheel Bearing Kit | RR | TBK553 |
|
03/02-08/06 | RWD (Twin Rear Whls) Ford Axle | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.4 (118bhp) Diesel (16v) RWD (2402cc) - (03/00-12/03)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
03/00-12/03 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
03/00-12/03 | RWD (Single Rear Whls) 1.0 Tonne | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK6529 |
|
03/00-12/03 | RWD (Twin Rear Whls) Dana Axle | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
| Wheel Bearing Kit | RR | TBK553 |
|
03/00-12/03 | RWD (Twin Rear Whls) Ford Axle | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.4 (74bhp) Diesel (16v) RWD (2402cc) - (03/00-05/01)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
03/00-05/01 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
03/00-05/01 | RWD (Single Rear Whls) 1.0 Tonne | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK6529 |
|
03/00-05/01 | RWD (Twin Rear Whls) Dana Axle | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
| Wheel Bearing Kit | RR | TBK553 |
|
03/00-05/01 | RWD (Twin Rear Whls) Ford Axle | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.4 TDCi (137bhp) Diesel (16v) RWD (2402cc) - (04/04-08/06)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
04/04-08/06 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
04/04-08/06 | RWD (Single Rear Whls) 1.0 Tonne | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK6529 |
|
04/04-08/06 | RWD (Twin Rear Whls) Dana Axle | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
| Wheel Bearing Kit | RR | TBK553 |
|
04/04-08/06 | RWD (Twin Rear Whls) Ford Axle | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.4 TDdi (114bhp) Diesel (16v) RWD (2402cc) - (04/04-08/06)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
04/04-08/06 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
04/04-08/06 | RWD (Single Rear Whls) 1.0 Tonne | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK6529 |
|
04/04-08/06 | RWD (Twin Rear Whls) Dana Axle | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
| Wheel Bearing Kit | RR | TBK553 |
|
04/04-08/06 | RWD (Twin Rear Whls) Ford Axle | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.4 TDdi (123bhp) Diesel (16v) RWD (2402cc) - (08/01-08/06)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
08/01-08/06 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
08/01-08/06 | RWD (Single Rear Whls) 1.0 Tonne | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK6529 |
|
08/01-08/06 | RWD (Twin Rear Whls) Dana Axle | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
| Wheel Bearing Kit | RR | TBK553 |
|
08/01-08/06 | RWD (Twin Rear Whls) Ford Axle | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
Transit 2.4 TDdi (89bhp) Diesel (16v) RWD (2402cc) - (03/00-08/06)
| Description | Pos | Part No | Date | Note | ||
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK1258 |
|
03/00-08/06 | I/D 45mm : Flange 78mm : Width 53mm, | |
| Hub Bearing Kit | RR | TBK1260 |
|
03/00-08/06 | RWD (Single Rear Whls) 1.0 Tonne | ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK6529 |
|
03/00-08/06 | RWD (Twin Rear Whls) Dana Axle | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
| Wheel Bearing Kit | RR | TBK553 |
|
03/00-08/06 | RWD (Twin Rear Whls) Ford Axle | (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 85mm : Width 19mm) x 1 |
MK 7 (2006-2014) Van
Transit 2.2 TDCi 100 (99bhp) Diesel (16v) FWD (2198cc) - (08/11-12/14)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
08/11-12/14 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
08/11-12/14 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
08/11-12/14 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Hub Bearing Kit | RR | TBK6527 |
|
08/11-12/14 | FWD (0.8 & 1.3 Tonne) | ABS, I/D 37mm : Flange 195mm : Width 78mm |
| Hub Bearing Kit | RR | TBK1259 |
|
08/11-12/14 | FWD (0.8 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK6528 |
|
08/11-12/14 | FWD (1.5 & 1.7 Tonne) | ABS, I/D 45mm : Flange 195mm : Width 78mm |
Transit 2.2 TDCi 100 (99bhp) Diesel (16v) RWD (2198cc) - (08/11-12/14)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
08/11-12/14 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
08/11-12/14 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
08/11-12/14 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |

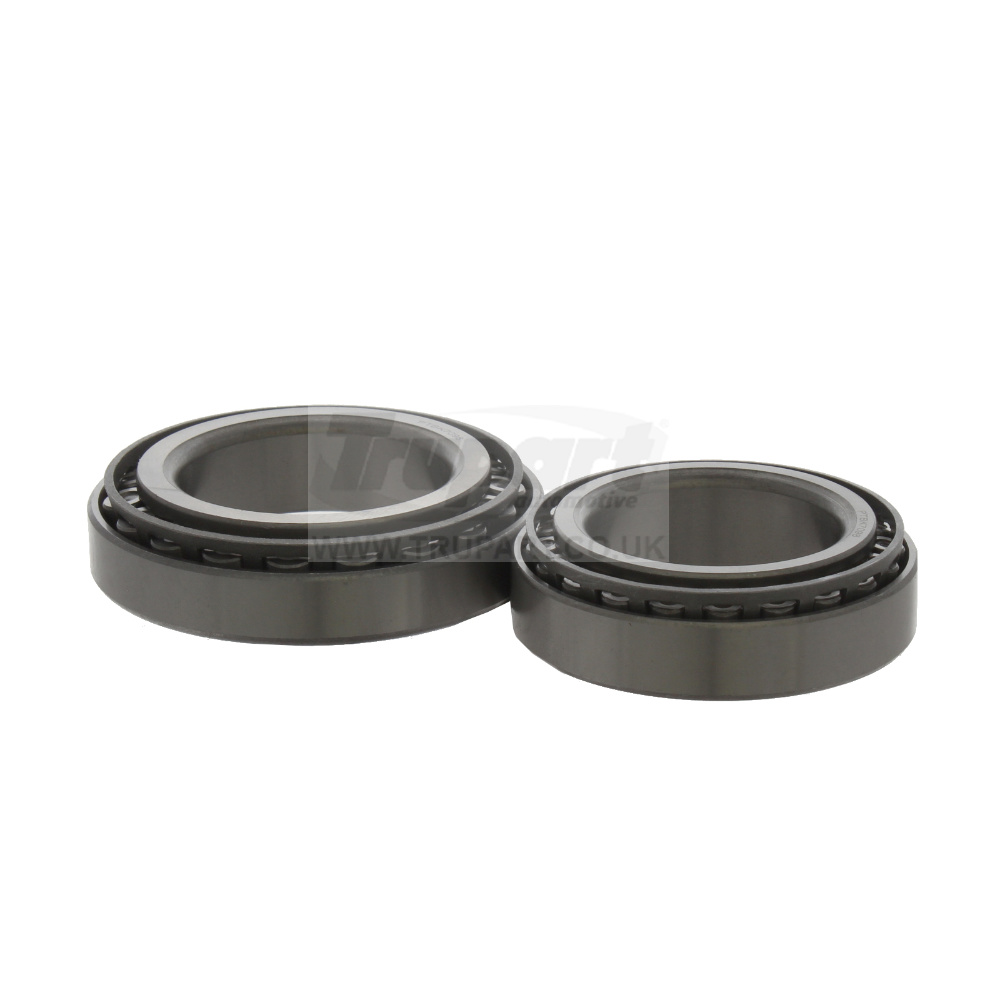

| Wheel Bearing Kit | RR | TBK6529 |
|
08/11-12/14 | RWD | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
Transit 2.2 TDCi 110 (109bhp) Diesel (16v) FWD (2198cc) - (06/06-12/08)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
06/06-12/08 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
06/06-12/08 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
06/06-12/08 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Hub Bearing Kit | RR | TBK6527 |
|
06/06-12/08 | FWD (0.8 & 1.3 Tonne) | ABS, I/D 37mm : Flange 195mm : Width 78mm |
| Hub Bearing Kit | RR | TBK1259 |
|
06/06-12/08 | FWD (0.8 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK6528 |
|
06/06-12/08 | FWD (1.5 & 1.7 Tonne) | ABS, I/D 45mm : Flange 195mm : Width 78mm |
Transit 2.2 TDCi 115 (114bhp) Diesel (16v) FWD (2198cc) - (09/08-03/12)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
09/08-03/12 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
09/08-03/12 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
09/08-03/12 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Hub Bearing Kit | RR | TBK6527 |
|
09/08-03/12 | FWD (0.8 & 1.3 Tonne) | ABS, I/D 37mm : Flange 195mm : Width 78mm |
| Hub Bearing Kit | RR | TBK1259 |
|
09/08-03/12 | FWD (0.8 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK6528 |
|
09/08-03/12 | FWD (1.5 & 1.7 Tonne) | ABS, I/D 45mm : Flange 195mm : Width 78mm |
Transit 2.2 TDCi 125 (123bhp) Diesel (16v) 4WD (2198cc) - (08/11-12/14)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
08/11-12/14 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
08/11-12/14 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
08/11-12/14 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Hub Bearing Kit | RR | TBK6527 |
|
08/11-12/14 | 4WD (0.8 & 1.3 Tonne) | ABS, I/D 37mm : Flange 195mm : Width 78mm |
| Hub Bearing Kit | RR | TBK1259 |
|
08/11-12/14 | 4WD (0.8 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK6528 |
|
08/11-12/14 | 4WD (1.5 & 1.7 Tonne) | ABS, I/D 45mm : Flange 195mm : Width 78mm |
Transit 2.2 TDCi 125 (123bhp) Diesel (16v) FWD (2198cc) - (08/11-12/14)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
08/11-12/14 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
08/11-12/14 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
08/11-12/14 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Hub Bearing Kit | RR | TBK6527 |
|
08/11-12/14 | FWD (0.8 & 1.3 Tonne) | ABS, I/D 37mm : Flange 195mm : Width 78mm |
| Hub Bearing Kit | RR | TBK1259 |
|
08/11-12/14 | FWD (0.8 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK6528 |
|
08/11-12/14 | FWD (1.5 & 1.7 Tonne) | ABS, I/D 45mm : Flange 195mm : Width 78mm |
Transit 2.2 TDCi 125 (123bhp) Diesel (16v) RWD (2198cc) - (08/11-12/14)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
08/11-12/14 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
08/11-12/14 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
08/11-12/14 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Wheel Bearing Kit | RR | TBK6529 |
|
08/11-12/14 | RWD | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
Transit 2.2 TDCi 130 (129bhp) Diesel (16v) FWD (2198cc) - (06/06-03/08)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
06/06-03/08 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
06/06-03/08 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
06/06-03/08 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Hub Bearing Kit | RR | TBK6527 |
|
06/06-03/08 | FWD (0.8 & 1.3 Tonne) | ABS, I/D 37mm : Flange 195mm : Width 78mm |
| Hub Bearing Kit | RR | TBK1259 |
|
06/06-03/08 | FWD (0.8 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK6528 |
|
06/06-03/08 | FWD (1.5 & 1.7 Tonne) | ABS, I/D 45mm : Flange 195mm : Width 78mm |
Transit 2.2 TDCi 135 (134bhp) Diesel (16v) RWD (2198cc) - (08/11-12/14)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
08/11-12/14 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
08/11-12/14 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
08/11-12/14 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Wheel Bearing Kit | RR | TBK6529 |
|
08/11-12/14 | RWD | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
Transit 2.2 TDCi 140 (138bhp) Diesel (16v) FWD (2198cc) - (10/07-12/14)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
10/07-12/14 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
10/07-12/14 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
10/07-12/14 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Hub Bearing Kit | RR | TBK6527 |
|
10/07-12/14 | FWD (0.8 & 1.3 Tonne) | ABS, I/D 37mm : Flange 195mm : Width 78mm |
| Hub Bearing Kit | RR | TBK1259 |
|
10/07-12/14 | FWD (0.8 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK6528 |
|
10/07-12/14 | FWD (1.5 & 1.7 Tonne) | ABS, I/D 45mm : Flange 195mm : Width 78mm |
Transit 2.2 TDCi 155 (153bhp) Diesel (16v) RWD (2198cc) - (08/11-12/14)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
08/11-12/14 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
08/11-12/14 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
08/11-12/14 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Wheel Bearing Kit | RR | TBK6529 |
|
08/11-12/14 | RWD | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
Transit 2.2 TDCi 85 (84bhp) Diesel (16v) FWD (2198cc) - (06/06-03/12)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
06/06-03/12 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
06/06-03/12 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
06/06-03/12 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Hub Bearing Kit | RR | TBK6527 |
|
06/06-03/12 | FWD (0.8 & 1.3 Tonne) | ABS, I/D 37mm : Flange 195mm : Width 78mm |
| Hub Bearing Kit | RR | TBK1259 |
|
06/06-03/12 | FWD (0.8 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK6528 |
|
06/06-03/12 | FWD (1.5 & 1.7 Tonne) | ABS, I/D 45mm : Flange 195mm : Width 78mm |
Transit 2.3 (143bhp) Petrol (16v) RWD (2261cc) - (06/06-03/12)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
06/06-03/12 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
06/06-03/12 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
06/06-03/12 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Wheel Bearing Kit | RR | TBK6529 |
|
06/06-03/12 | RWD | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
Transit 2.4 TDCi 100 (99bhp) Diesel (16v) RWD (2402cc) - (06/06-03/12)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
06/06-03/12 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
06/06-03/12 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
06/06-03/12 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Wheel Bearing Kit | RR | TBK6529 |
|
06/06-03/12 | RWD | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
Transit 2.4 TDCi 115 (114bhp) Diesel (16v) RWD (2402cc) - (06/06-03/12)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
06/06-03/12 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
06/06-03/12 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
06/06-03/12 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Wheel Bearing Kit | RR | TBK6529 |
|
06/06-03/12 | RWD | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
Transit 2.4 TDCi 140 (138bhp) Diesel (16v) 4WD (2402cc) - (04/07-03/12)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
04/07-03/12 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
04/07-03/12 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
04/07-03/12 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Hub Bearing Kit | RR | TBK6527 |
|
04/07-03/12 | 4WD (0.8 & 1.3 Tonne) | ABS, I/D 37mm : Flange 195mm : Width 78mm |
| Hub Bearing Kit | RR | TBK1259 |
|
04/07-03/12 | 4WD (0.8 Tonne) | No ABS, I/D 37mm : Flange 190mm : Width 90mm |
| Hub Bearing Kit | RR | TBK6528 |
|
04/07-03/12 | 4WD (1.5 & 1.7 Tonne) | ABS, I/D 45mm : Flange 195mm : Width 78mm |
Transit 2.4 TDCi 140 (138bhp) Diesel (16v) RWD (2402cc) - (06/06-03/12)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
06/06-03/12 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
06/06-03/12 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
06/06-03/12 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Wheel Bearing Kit | RR | TBK6529 |
|
06/06-03/12 | RWD | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
Transit 3.2 TDCi 200 (197bhp) Diesel (20v) RWD (3199cc) - (11/07-12/14)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK6525 |
|
11/07-12/14 | Bearing Kit only (Excl. Hub Flange) | Suitable for TBK2746 (sold separately) : Max Load 1.75 Tonne, I/D 45mm : Flange 78mm : Width 57mm |
| Hub Bearing Kit (Complete - Incl. Hub Flange) | FR | TBK8899 |
|
11/07-12/14 | Combined Bearing Kit & Hub Flange | Combination of TBK6525 (Bearing Kit) & TBK2746 (Hub Flange)., I/D 45mm : Flange 210mm : Width 102mm : No. of teeth 28 |
| Hub Bearing Kit | FR | TBK6526 |
|
11/07-12/14 | Heavy Duty Bearing Kit only | I/D 49mm : Flange 87mm : Width 50mm, |
| Wheel Bearing Kit | RR | TBK6529 |
|
11/07-12/14 | RWD | 2 Piece Bearing, (I/D 55mm : O/D 90mm : Width 23mm) x 2 |
MK 8 (2014-) V363 Van
E-Transit 68kWh (181bhp) Electric RWD - (02/22-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|

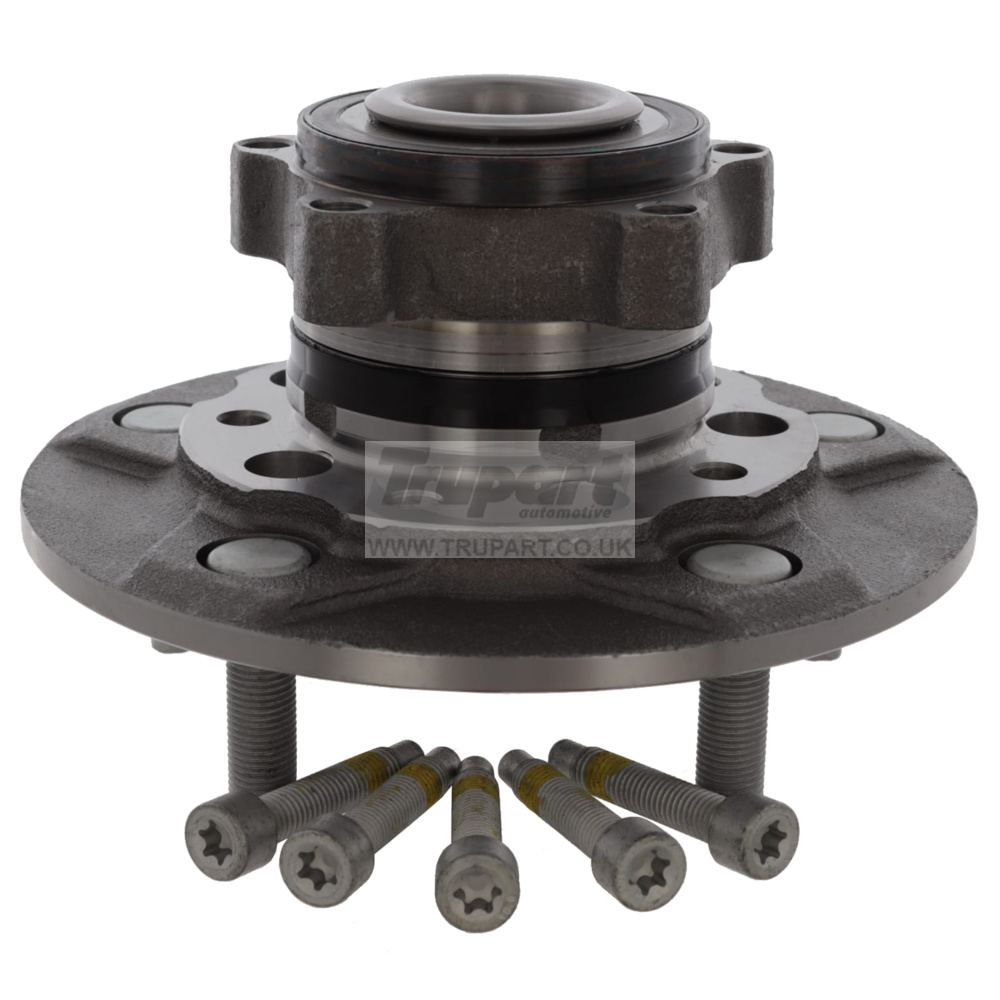

| Hub Bearing Kit | FR | TBK9468 |
|
02/22- | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |

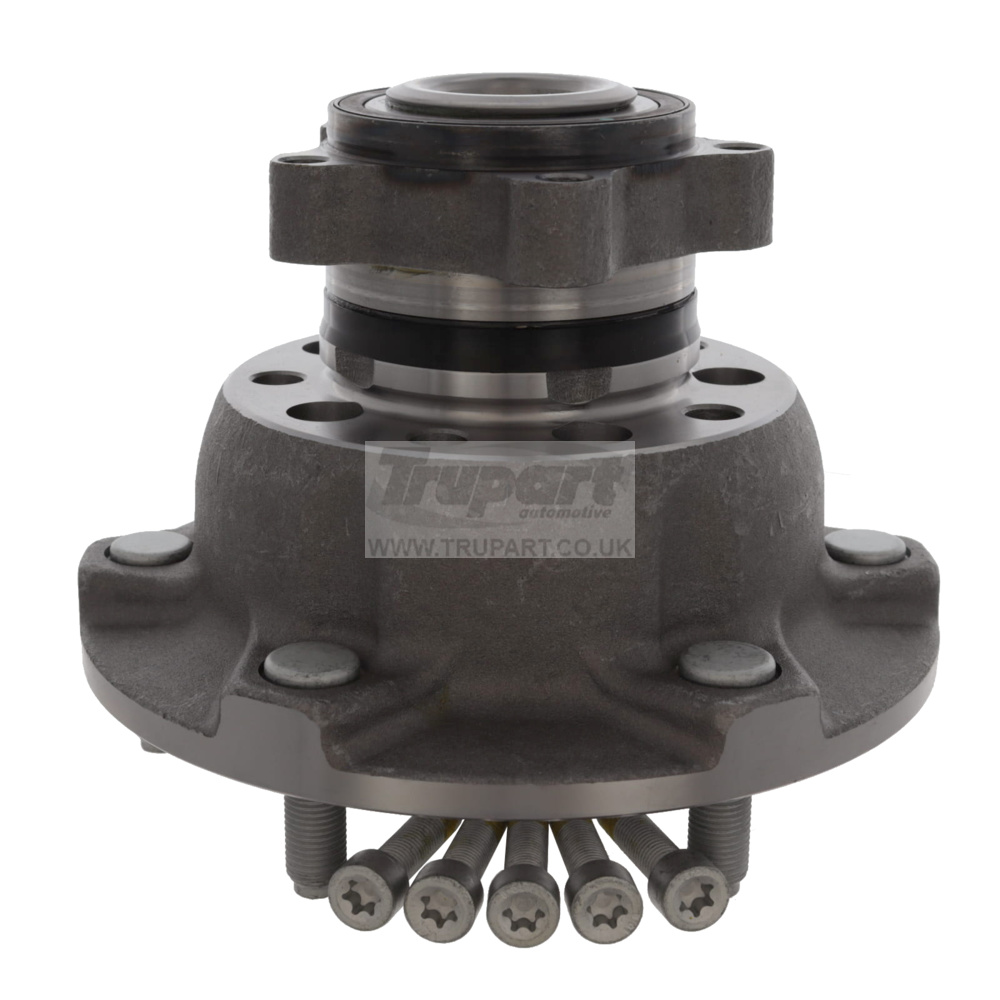

| Hub Bearing Kit | FR | TBK7085 |
|
02/22- | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
02/22- | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
E-Transit 68kWh (266bhp) Electric RWD - (02/22-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
02/22- | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
02/22- | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
02/22- | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue 165 (162bhp) Diesel (16v) 4WD (1996cc) - (06/24-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9777 |
|
06/24- | 4WD | O/D 65mm : Flange 208mm : Width 79mm, Integrated ABS Sensor : 5 Stud |
| Wheel Bearing Kit | RR | TBK7098 |
|
06/24- | 4WD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue 165 (162bhp) Diesel (16v) FWD (1996cc) - (06/24-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
06/24- | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
06/24- | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
06/24- | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue 165 (162bhp) Diesel (16v) RWD (1996cc) - (06/24-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
06/24- | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
06/24- | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
06/24- | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue TDCi 105 (103bhp) Diesel (16v) FWD (1996cc) - (05/16-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9469 |
|
05/16-10/19 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Excl. Bolt Fitting Kit, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9474 |
|
05/16-10/19 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Incl. Bolt Fitting Kit), Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9777 |
|
05/19- | FWD | O/D 65mm : Flange 208mm : Width 79mm, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | RR | TBK7030 |
|
05/16- | FWD (Excl. LWB 330 Series) | Integrated ABS Sensor, I/D 37mm : Flange 199mm : Width 90mm |
| Hub Bearing Kit | RR | TBK7029 |
|
05/16- | FWD (LWB 330 Series) | Integrated ABS Sensor, I/D 44mm : Flange 199mm : Width 90mm |
Transit 2.0 EcoBlue TDCi 105 (103bhp) Diesel (16v) RWD (1996cc) - (05/16-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
05/16- | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
05/16- | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
05/16- | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue TDCi 130 (129bhp) Diesel (16v) 4WD (1996cc) - (05/19-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9777 |
|
05/19- | 4WD | O/D 65mm : Flange 208mm : Width 79mm, Integrated ABS Sensor : 5 Stud |
| Wheel Bearing Kit | RR | TBK7098 |
|
05/19- | 4WD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue TDCi 130 (129bhp) Diesel (16v) FWD (1996cc) - (05/16-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9469 |
|
05/16-10/19 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Excl. Bolt Fitting Kit, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9474 |
|
05/16-10/19 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Incl. Bolt Fitting Kit), Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9777 |
|
05/19- | FWD | O/D 65mm : Flange 208mm : Width 79mm, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | RR | TBK7030 |
|
05/16- | FWD (Excl. LWB 330 Series) | Integrated ABS Sensor, I/D 37mm : Flange 199mm : Width 90mm |
| Hub Bearing Kit | RR | TBK7029 |
|
05/16- | FWD (LWB 330 Series) | Integrated ABS Sensor, I/D 44mm : Flange 199mm : Width 90mm |
Transit 2.0 EcoBlue TDCi 130 (129bhp) Diesel (16v) RWD (1996cc) - (04/16-)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
04/16- | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
04/16- | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
04/16- | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue TDCi 160 (158bhp) Diesel (16v) FWD (1996cc) - (12/20-09/23)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9777 |
|
12/20-09/23 | FWD | O/D 65mm : Flange 208mm : Width 79mm, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | RR | TBK7030 |
|
12/20-09/23 | FWD (Excl. LWB 330 Series) | Integrated ABS Sensor, I/D 37mm : Flange 199mm : Width 90mm |
| Hub Bearing Kit | RR | TBK7029 |
|
12/20-09/23 | FWD (LWB 330 Series) | Integrated ABS Sensor, I/D 44mm : Flange 199mm : Width 90mm |
Transit 2.0 EcoBlue TDCi 170 (168bhp) Diesel (16v) 4WD (1996cc) - (05/19-04/25)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9777 |
|
05/19-04/25 | 4WD | O/D 65mm : Flange 208mm : Width 79mm, Integrated ABS Sensor : 5 Stud |
| Wheel Bearing Kit | RR | TBK7098 |
|
05/19-04/25 | 4WD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue TDCi 170 (168bhp) Diesel (16v) FWD (1996cc) - (05/16-12/25)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9469 |
|
05/16-10/19 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Excl. Bolt Fitting Kit, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9474 |
|
05/16-10/19 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Incl. Bolt Fitting Kit), Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9777 |
|
05/19-12/25 | FWD | O/D 65mm : Flange 208mm : Width 79mm, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | RR | TBK7030 |
|
05/16-12/25 | FWD (Excl. LWB 330 Series) | Integrated ABS Sensor, I/D 37mm : Flange 199mm : Width 90mm |
| Hub Bearing Kit | RR | TBK7029 |
|
05/16-12/25 | FWD (LWB 330 Series) | Integrated ABS Sensor, I/D 44mm : Flange 199mm : Width 90mm |
Transit 2.0 EcoBlue TDCi 170 (168bhp) Diesel (16v) RWD (1996cc) - (05/16-12/25)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
05/16-12/25 | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
05/16-12/25 | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK9777 |
|
11/20-04/25 | FWD | O/D 65mm : Flange 208mm : Width 79mm, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | RR | TBK7030 |
|
11/20-04/25 | FWD (Excl. LWB 330 Series) | Integrated ABS Sensor, I/D 37mm : Flange 199mm : Width 90mm |
| Hub Bearing Kit | RR | TBK7029 |
|
11/20-04/25 | FWD (LWB 330 Series) | Integrated ABS Sensor, I/D 44mm : Flange 199mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK7098 |
|
05/16-12/25 | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue TDCi 185 (182bhp) Diesel (16v) FWD (1996cc) - (07/19-04/23)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9777 |
|
07/19-04/23 | FWD | O/D 65mm : Flange 208mm : Width 79mm, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9468 |
|
07/20-04/23 | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
07/20-04/23 | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | RR | TBK7030 |
|
07/19-04/23 | FWD (Excl. LWB 330 Series) | Integrated ABS Sensor, I/D 37mm : Flange 199mm : Width 90mm |
| Hub Bearing Kit | RR | TBK7029 |
|
07/19-04/23 | FWD (LWB 330 Series) | Integrated ABS Sensor, I/D 44mm : Flange 199mm : Width 90mm |
| Wheel Bearing Kit | RR | TBK7098 |
|
07/20-04/23 | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.0 EcoBlue TDCi 185 (182bhp) Diesel (16v) RWD (1996cc) - (07/19-04/23)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
07/19-04/23 | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
07/19-04/23 | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
07/19-04/23 | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.2 TDCi 100 (99bhp) Diesel (16v) FWD (2198cc) - (03/14-04/17)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9469 |
|
03/14-04/17 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Excl. Bolt Fitting Kit, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9474 |
|
03/14-04/17 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Incl. Bolt Fitting Kit), Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | RR | TBK7030 |
|
03/14-04/17 | FWD (Excl. LWB 330 Series) | Integrated ABS Sensor, I/D 37mm : Flange 199mm : Width 90mm |
| Hub Bearing Kit | RR | TBK7029 |
|
03/14-04/17 | FWD (LWB 330 Series) | Integrated ABS Sensor, I/D 44mm : Flange 199mm : Width 90mm |
Transit 2.2 TDCi 100 (99bhp) Diesel (16v) RWD (2198cc) - (03/14-04/17)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
03/14-04/17 | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
03/14-04/17 | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
03/14-04/17 | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.2 TDCi 125 (123bhp) Diesel (16v) 4WD (2198cc) - (10/14-04/17)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9469 |
|
10/14-04/17 | 4WD | I/D 36mm : Flange 208mm : Width 83mm : Excl. Bolt Fitting Kit, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9474 |
|
10/14-04/17 | 4WD | I/D 36mm : Flange 208mm : Width 83mm : Incl. Bolt Fitting Kit), Integrated ABS Sensor : 5 Stud |
| Wheel Bearing Kit | RR | TBK7098 |
|
10/14-04/17 | 4WD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.2 TDCi 125 (123bhp) Diesel (16v) FWD (2198cc) - (03/14-04/17)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9469 |
|
03/14-04/17 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Excl. Bolt Fitting Kit, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9474 |
|
03/14-04/17 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Incl. Bolt Fitting Kit), Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | RR | TBK7030 |
|
03/14-04/17 | FWD (Excl. LWB 330 Series) | Integrated ABS Sensor, I/D 37mm : Flange 199mm : Width 90mm |
| Hub Bearing Kit | RR | TBK7029 |
|
03/14-04/17 | FWD (LWB 330 Series) | Integrated ABS Sensor, I/D 44mm : Flange 199mm : Width 90mm |
Transit 2.2 TDCi 125 (123bhp) Diesel (16v) RWD (2198cc) - (03/14-08/18)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
03/14-08/18 | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
03/14-08/18 | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
03/14-08/18 | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.2 TDCi 155 (153bhp) Diesel (16v) 4WD (2198cc) - (10/14-04/17)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9469 |
|
10/14-04/17 | 4WD | I/D 36mm : Flange 208mm : Width 83mm : Excl. Bolt Fitting Kit, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9474 |
|
10/14-04/17 | 4WD | I/D 36mm : Flange 208mm : Width 83mm : Incl. Bolt Fitting Kit), Integrated ABS Sensor : 5 Stud |
| Wheel Bearing Kit | RR | TBK7098 |
|
10/14-04/17 | 4WD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
Transit 2.2 TDCi 155 (153bhp) Diesel (16v) FWD (2198cc) - (03/14-04/17)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9469 |
|
03/14-04/17 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Excl. Bolt Fitting Kit, Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | FR | TBK9474 |
|
03/14-04/17 | FWD | I/D 36mm : Flange 208mm : Width 83mm : Incl. Bolt Fitting Kit), Integrated ABS Sensor : 5 Stud |
| Hub Bearing Kit | RR | TBK7030 |
|
03/14-04/17 | FWD (Excl. LWB 330 Series) | Integrated ABS Sensor, I/D 37mm : Flange 199mm : Width 90mm |
| Hub Bearing Kit | RR | TBK7029 |
|
03/14-04/17 | FWD (LWB 330 Series) | Integrated ABS Sensor, I/D 44mm : Flange 199mm : Width 90mm |
Transit 2.2 TDCi 155 (153bhp) Diesel (16v) RWD (2198cc) - (03/14-08/18)
| Description | Pos | Part No | Date | Note | Note | |
|---|---|---|---|---|---|---|
| Hub Bearing Kit | FR | TBK9468 |
|
03/14-08/18 | RWD (Single Rear Whls) | 5 Stud : 208mm Flange, Integrated ABS Sensor |
| Hub Bearing Kit | FR | TBK7085 |
|
03/14-08/18 | RWD (Twin Rear Whls) | Complete Hub incl. Bearing : 6 Stud : 215mm Flange, Integrated ABS Sensor |
| Wheel Bearing Kit | RR | TBK7098 |
|
03/14-08/18 | RWD | 2 Piece Bearing (I/D 57mm : O/D 97mm : Width 22mm) x 1, (I/D 51mm : O/D 83mm : Width 23mm) x 1 |
All comparative part numbers shown within our catalogues, on our website, or quoted on our products are for identification and cross referencing purposes only.
