(2004-2010) Hatchback

Prius 1.5 (76bhp) Petrol/Electric (16v) FWD (1497cc) - (01/04-03/10)

TBK6924 - Main View

Close

TBK1354 - Main View

Close

Description	Pos	Part No		Date		Note

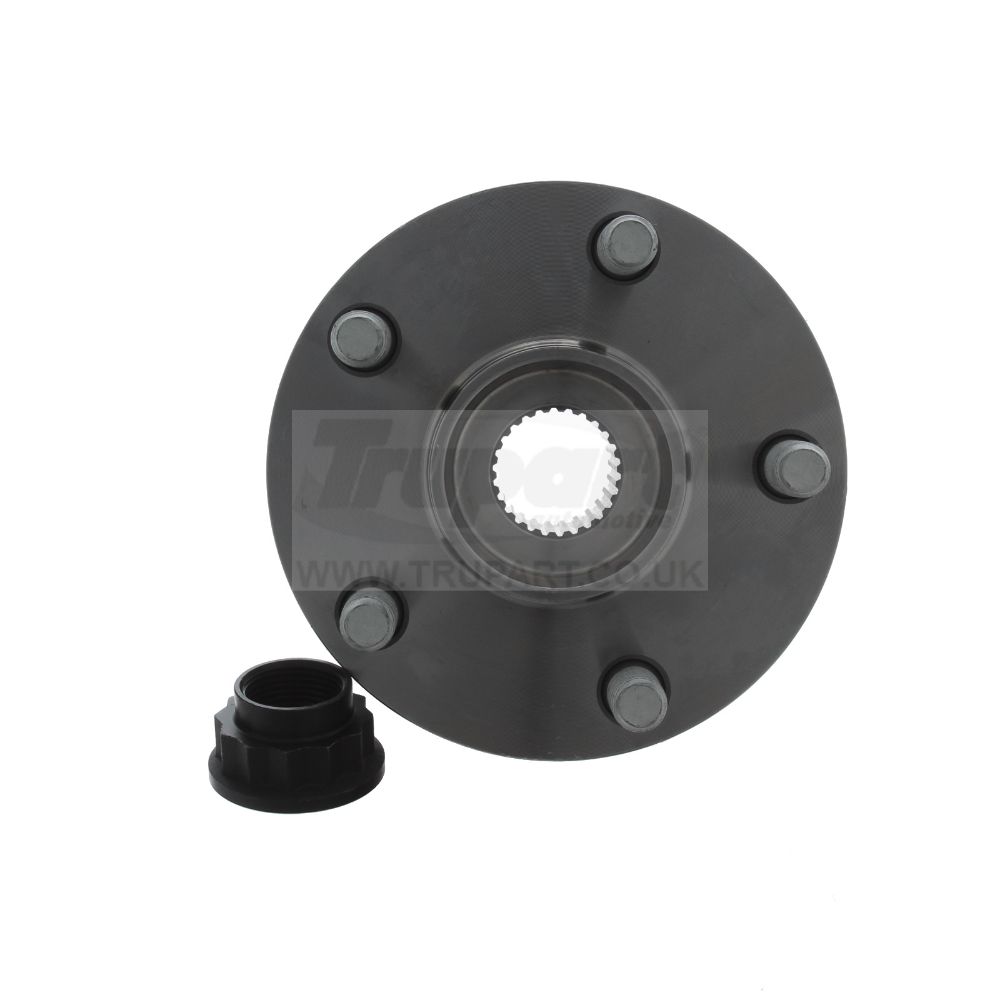

Hub Bearing Kit	FR	TBK6924		01/04-03/10		Flange 125mm,

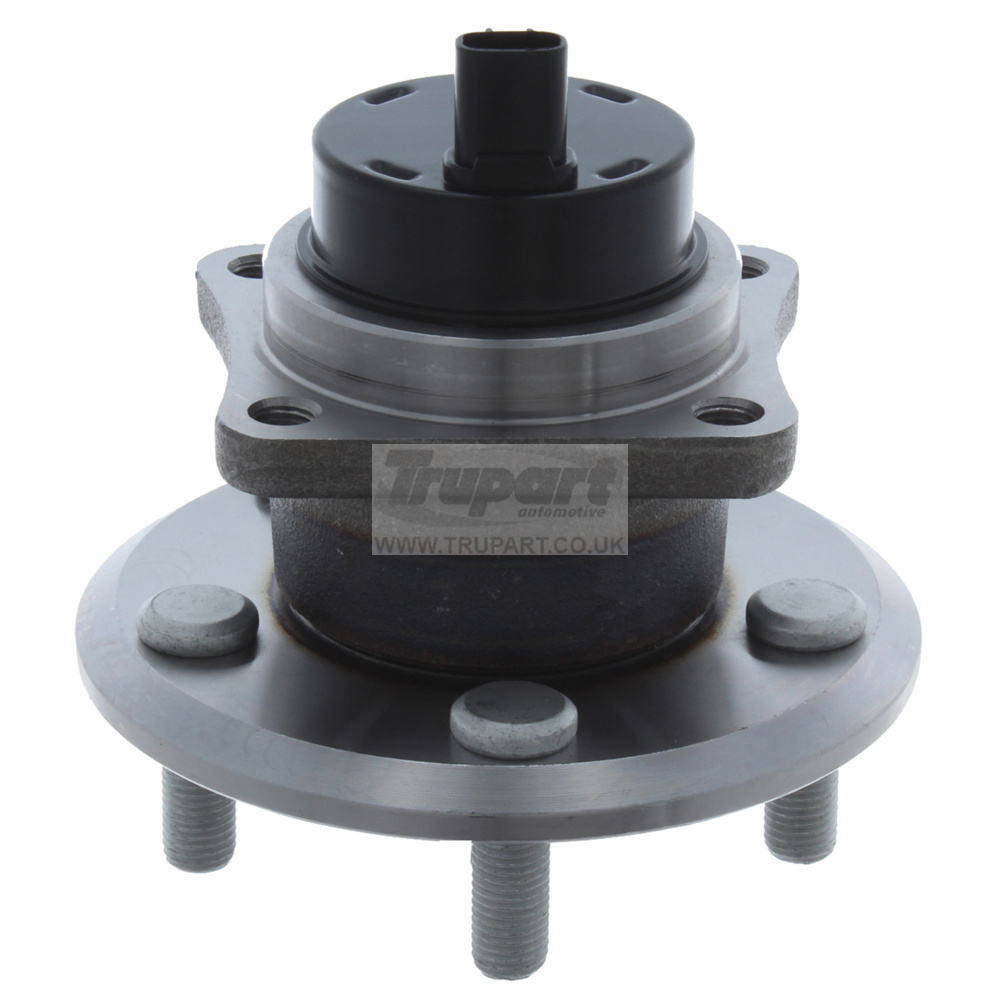

Hub Bearing Kit	RR	TBK1354		01/04-03/10		Integrated ABS Sensor, Flange 135mm

(2009-2016) Hatchback

Prius 1.8 (134bhp) Petrol/Electric (16v) FWD (1798cc) - (06/09-12/16)

TBK7576 - Main View

Close

TBK7577 - Main View

Close

Description	Pos	Part No		Date		Note

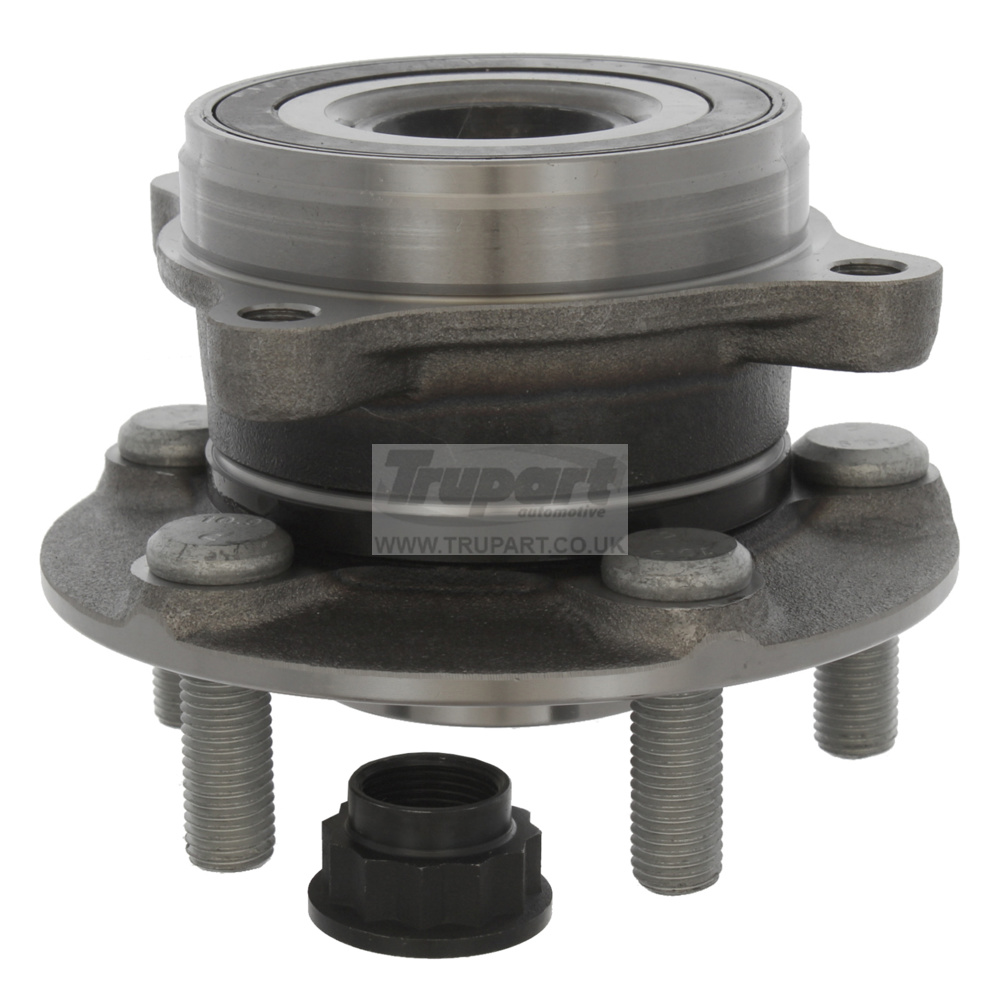

Hub Bearing Kit	FR	TBK7576		06/09-12/16		ASB Bearing (ABS) Incl. Integrated ABS Sensor, I/D 28mm : Flange 125mm : Width 78mm

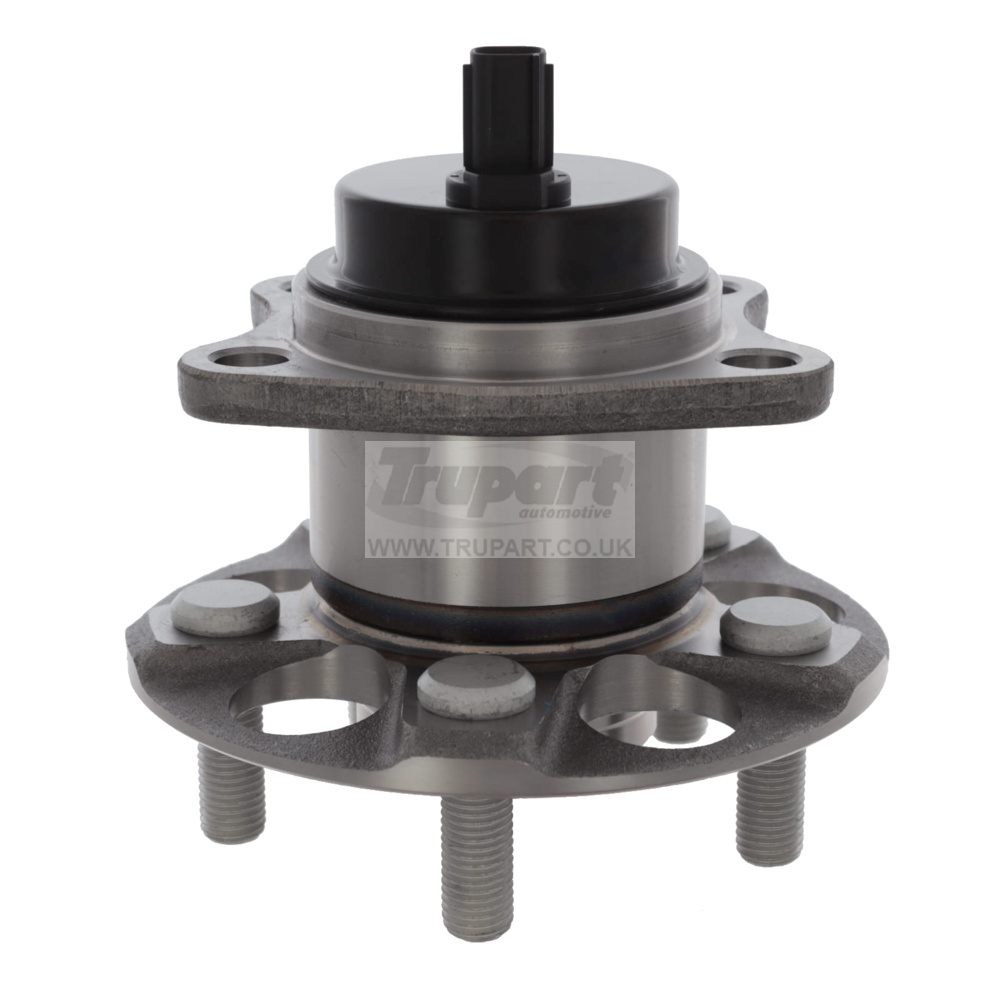

Hub Bearing Kit	RR	TBK7577		06/09-12/16		Integrated ABS Sensor : Width 60mm, Flange 135mm : O/D 74mm : O/A Width 124mm

(2015-2022) Hatchback

Prius 1.8 (121bhp) Petrol/Electric (16v) 4WD (1798cc) - (12/18-04/21)

TBK9564 - Main View

Close

Description	Pos	Part No		Date		Note
Hub Bearing Kit	FR	TBK9564		12/18-04/21		I/D 46mm : Flange 135mm : Width 64mm : Height 79mm, Incl. Integrated ABS Sensor : 3 Fixing Holes

Prius 1.8 (121bhp) Petrol/Electric (16v) FWD (1798cc) - (11/15-12/22)

TBK9564 - Main View

Close

TBK9875 - Main View

Close

Description	Pos	Part No		Date		Note
Hub Bearing Kit	FR	TBK9564		11/15-12/22		I/D 46mm : Flange 135mm : Width 64mm : Height 79mm, Incl. Integrated ABS Sensor : 3 Fixing Holes

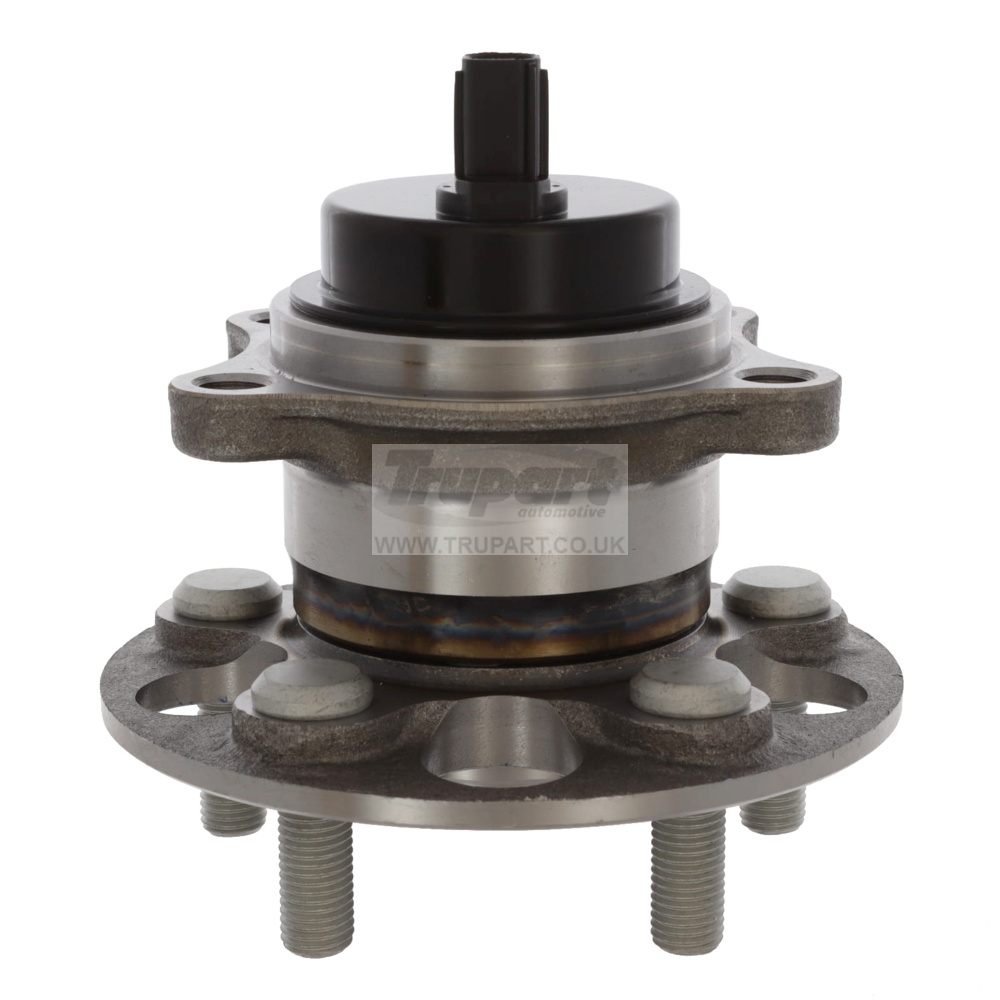

Hub Bearing Kit	RR	TBK9875		11/15-12/22		Flange 135mm, 4 Fixing Holes

(2024-) Hatchback

Prius 2.0 13.6kWh (220bhp) Petrol/Electric (16v) FWD (1987cc) - (04/24-)

TBK9302 - Main View

Close

Description	Pos	Part No		Date		Note
Hub Bearing Kit	FR	TBK9302		04/24-		I/D 26mm : Flange 152mm : O/D 85mm : Width 74mm, 96 Teeth (ABS Ring) : 26 Teeth on Spline

All comparative part numbers shown within our catalogues, on our website, or quoted on our products are for identification and cross referencing purposes only.
